Console Dashboard (v2) allows users to move Dashboards into a new or existing popup window to support second screen viewing. Users also have the ability to favorite existing Dashboards allowing users to easily add their favorite Dashboards to any Dashboard bar.
How do I enable Dashboard (v2)?
-
Ensure the 'DashboardV2' module has been added to your account. Please contact support, if you want to add this module to your account.
-
Restart OpenField and open an existing Activity.
How do I move a Dashboard to or from a Second Screen?
-

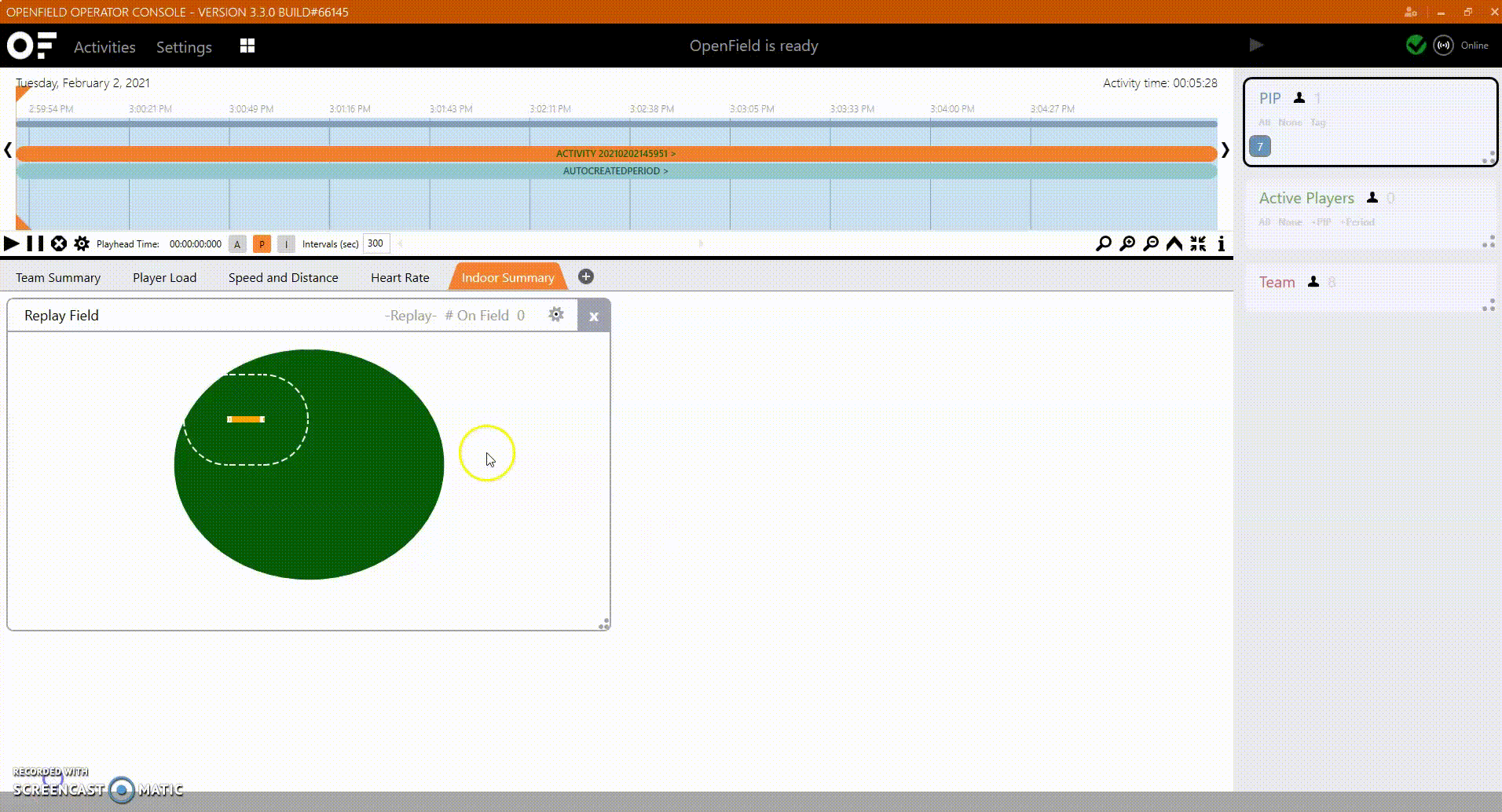

Click the Dashboard tab of the Dashboard you want to move and drag it onto a second screen or back into the main Dashboard bar.
NOTE: Click and drag functionality also allows user to reorder the dashboards on a Dashboard bar.
OR -

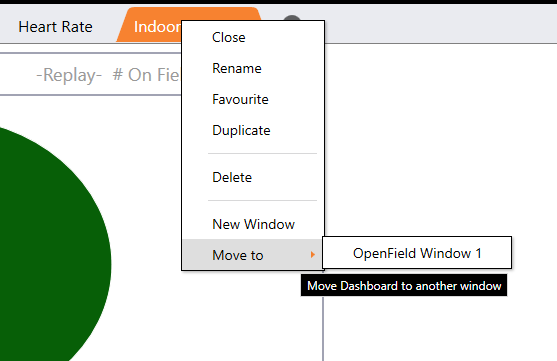

To move a Dashboard to an existing popup window, right click a Dashboard Tab > select Move to > Select Dashboard window. To move a Dashboard to a new window, click New Window.
-
From a popup window, click the Fullscreen icon to expand a Dashboard to fit into a full screen.
-
Click the Recall icon to return the Dashboard(s) to the main console dashboard bar.
How to Create a New Dashboard
-
Navigate to any Dashboard Bar.
-

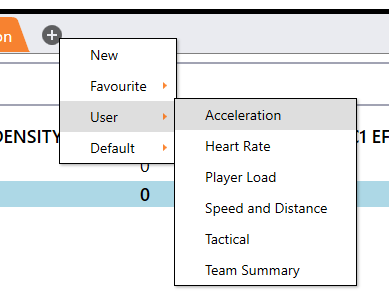

Press the + button on the Dashboard bar. This will give you the option of creating a new dashboard, favoriting an existing dashboard, loading a previously created dashboard, or loading a default dashboard.
-

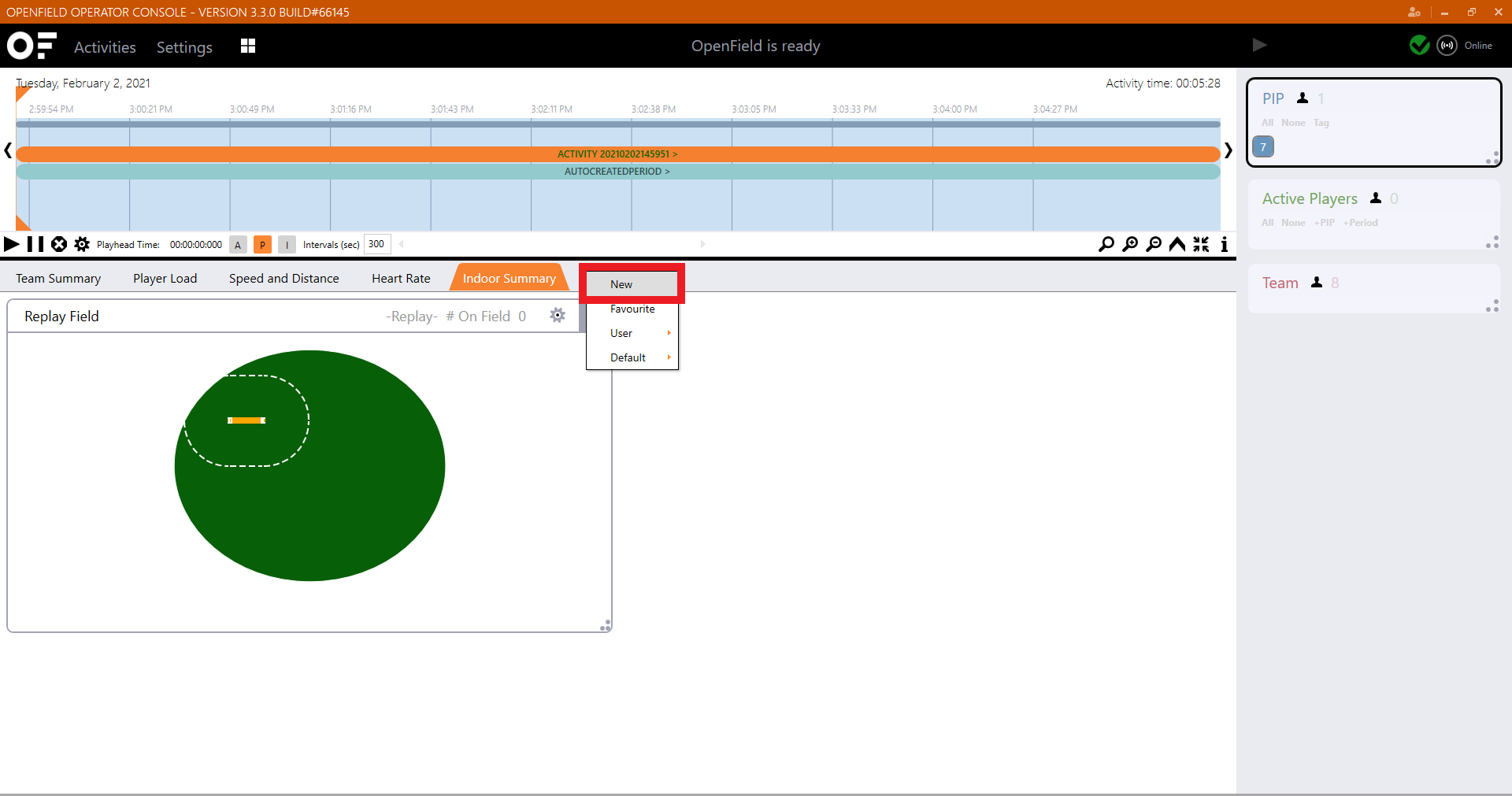

Select New to load a blank dashboard that you will be able to populate with Console Widgets.
How to Rename a Dashboard
-
Right click the Dashboard tab of the Dashboard you want to rename > Select Rename.
OR
-
Double click on the Dashboard tab.
-
Enter in the new Name.
-
Select Rename.
How to Delete a Dashboard
-
Right click the Dashboard tab of the Dashboard you want to delete.
-
Select Delete.
-
Click Yes to the Prompted message.
How to Close a Dashboard
Closing a Dashboard removes the Dashboard from a Dashboard bar but allows the user to access the Dashboard again from the Users list when a new Dashboard is created.
-
Right click the Dashboard tab of the Dashboard you want to delete.
-
Select Close.
OR
-
Close a popup window by clicking the x in the top right corner of the window.
How to Duplicate a Dashboard
-
Right click the Dashboard tab of the Dashboard you want to duplicate.
-
Select Duplicate.
