What are Console Dashboards?
Console Dashboards contain a user-determined collection of Console Widgets. Console Dashboards are a great way of grouping certain Console Widgets together (e.g. Grouping together Console Widgets that just display Inertial Metrics).
How to Create a New Dashboard on the Console
- In the Console Tile Screen, hit Start or Last Activity.

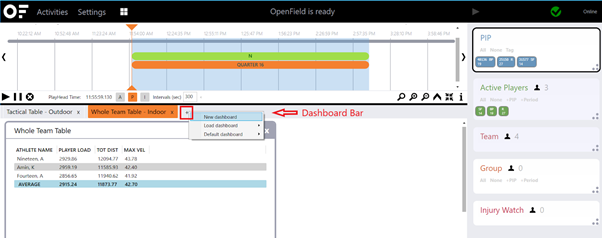

- Navigate to the Dashboard Bar which is located beneath the Activity Timeline.
- Press the + button on the Dashboard bar. This will give you the option of creating a new dashboard, loading a previously created dashboard, or loading a default dashboard.
- Select New Dashboard to load a blank dashboard that you will be able to populate with Console Widgets.
How to rename a Dashboard
- Right click the Dashboard tab of the Dashboard you want to rename.
- Select Rename.
- Enter in the new Name.
- Select Rename.
How to Delete a Dashboard
- Right click the Dashboard tab of the Dashboard you want to delete.
- Select Delete.
- Click Yes to the Prompted message.
How to Move a Dashboard
- Right click the Dashboard tab of the Dashboard you want to move.
- Select Move Left, Move Right, Move First, Move Last according to where you want your Dashboard to be in the Dashboard Bar. Another option is to click and drag the Dashboard to the desired location on the Dashboard Bar.
