How to Detect Goal Keeper Dives in OpenField

What are Catapult Goal Keeping Analytics?

Catapult’s Goal Keeping Analytics use advanced algorithms to automatically detect goalkeeper-specific dive events and quantify key performance metrics for each dive.

There are two versions available:

Version 1 (GK.V1)

Uses the original detection algorithm.

Each dive is classified into combined metrics such as:

• IMA Dive Intensity Band
• Dive Direction (Right/Left)
• IMA Dive Return Band

Example output:

IMA Dive Intensity Band x, Right, Return Band y

Version 2 (GK.V2)

Uses a newer, more accurate detection algorithm.

Each dive is broken down into three intuitive metrics:

• Dive Load – intensity of the dive
• Time to Feet – time taken to return to upright position
• Dive Count – number of detected dives

Each metric is further divided into Bands associated to:

• Intensity of Dive Load
• Direction of Dive (Left, Centre, Right)
• Duration to return to an upright position (Time-to-feet)

Note: Version 2 is recommended for improved accuracy and clearer reporting.

Requirements

Devices

• Vector 7 users: Vector G7 devices
• Vector 8 users: S8 devices

Software

• OpenField Console version 1.19.0 or higher
• OpenField Cloud access

Account Modules

• GK.V1 and/or GK.V2 must be enabled. Contact Support to have these modules enabled for your account.

Configuration in OpenField Cloud

All setup steps below are completed in OpenField Cloud.

Set Goal Keeper Positions

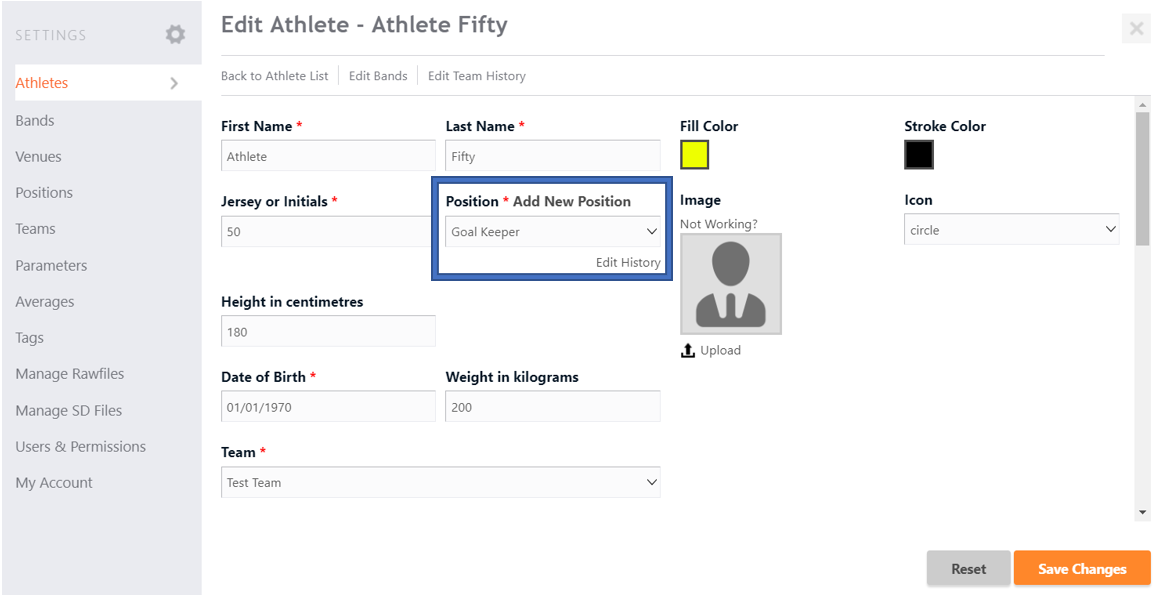

1. Navigate to: Settings > Athletes

2. Edit each goalkeeper

3. Set Position exactly as: 'Goal Keeper' (capital G and K)

4. Select Edit History

5. Ensure Position History covers the sessions to be analysed



Configure the Position

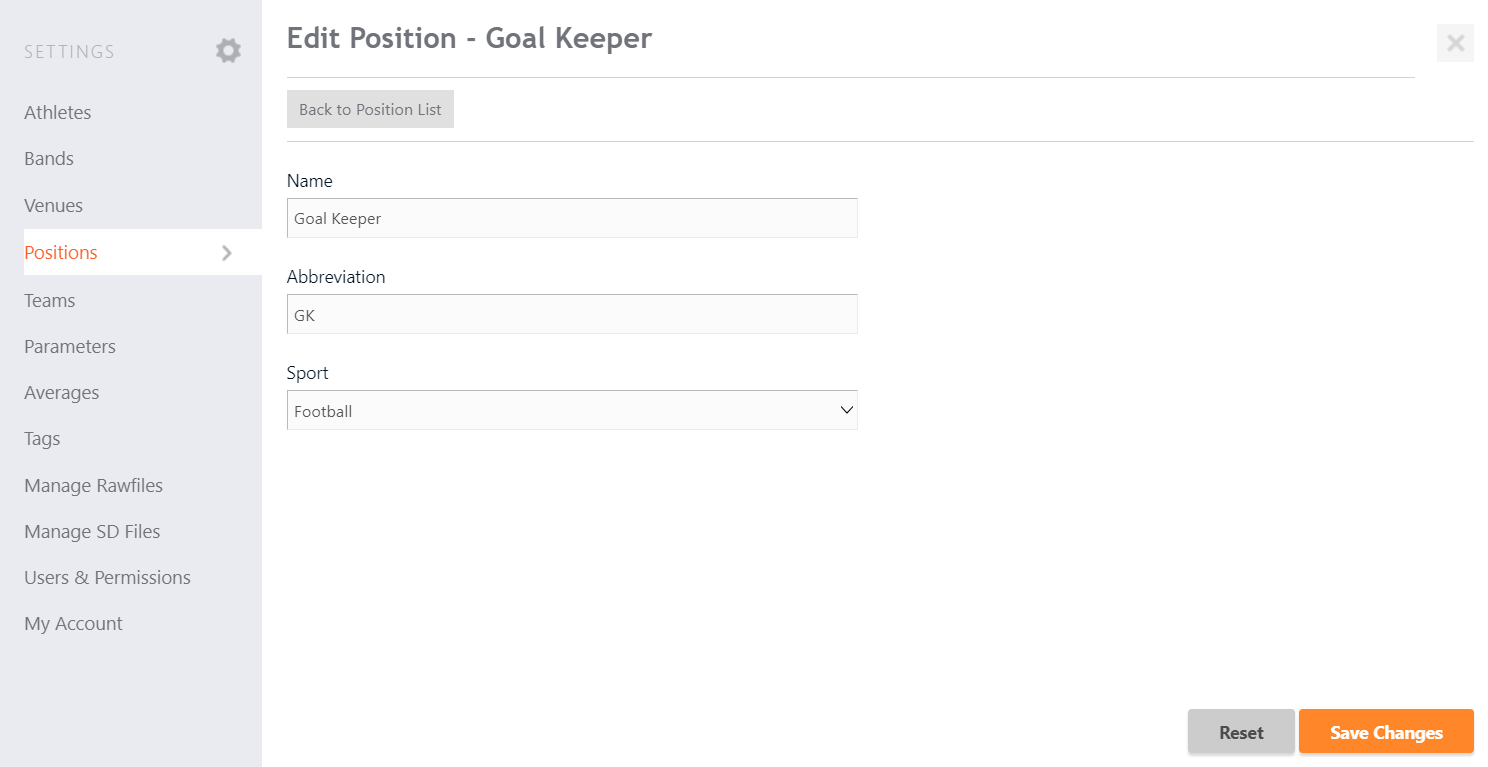

1. Navigate to: Settings > Positions

2. Edit the Goal Keeper position

3. Confirm:

   • Sport: Football

   • Abbreviation: GK

Configure Teams

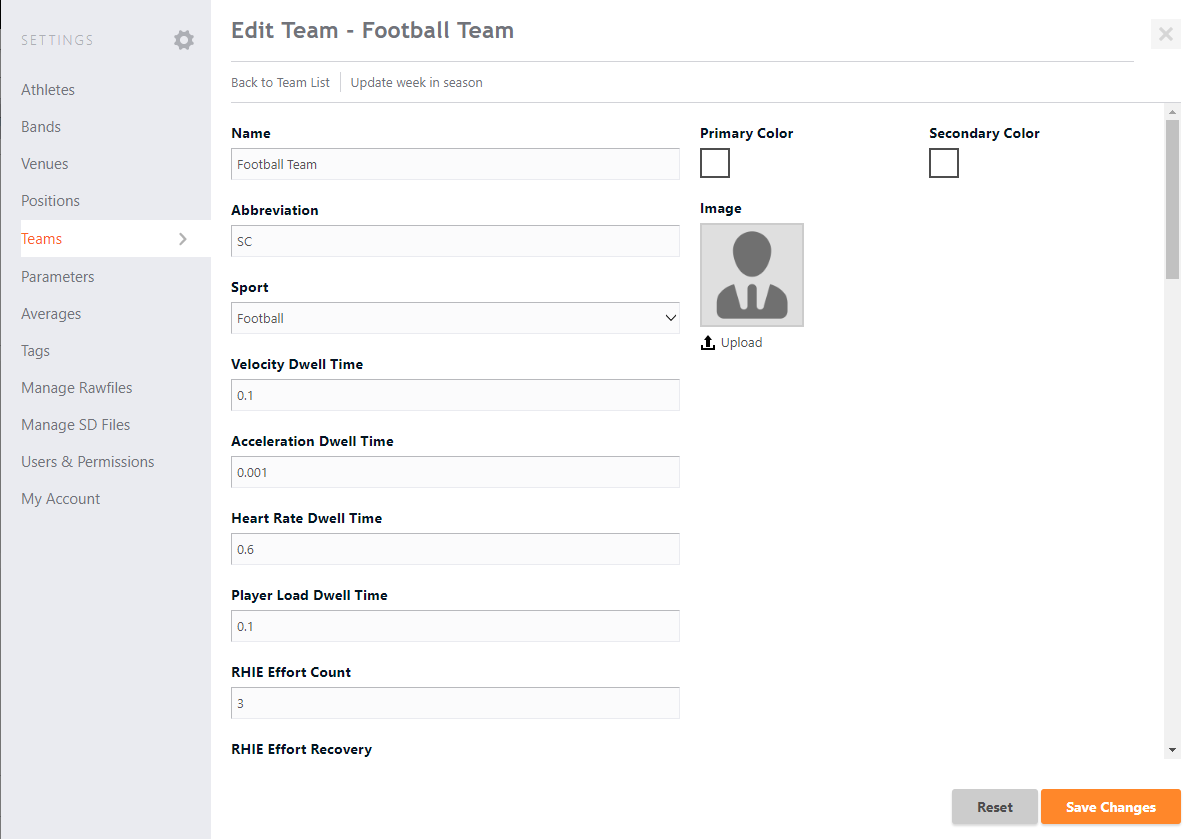

1. Navigate to: Settings > Teams

2. Edit teams containing Goal Keeper athletes

3. Confirm:

   • Sport: Football

   • Dive Load RHIE = non-zero value (Default: 3)

   • Dive Confidence % = non-zero value (Default: 50%)



Configure Dive Bands (GK.V2 Only)

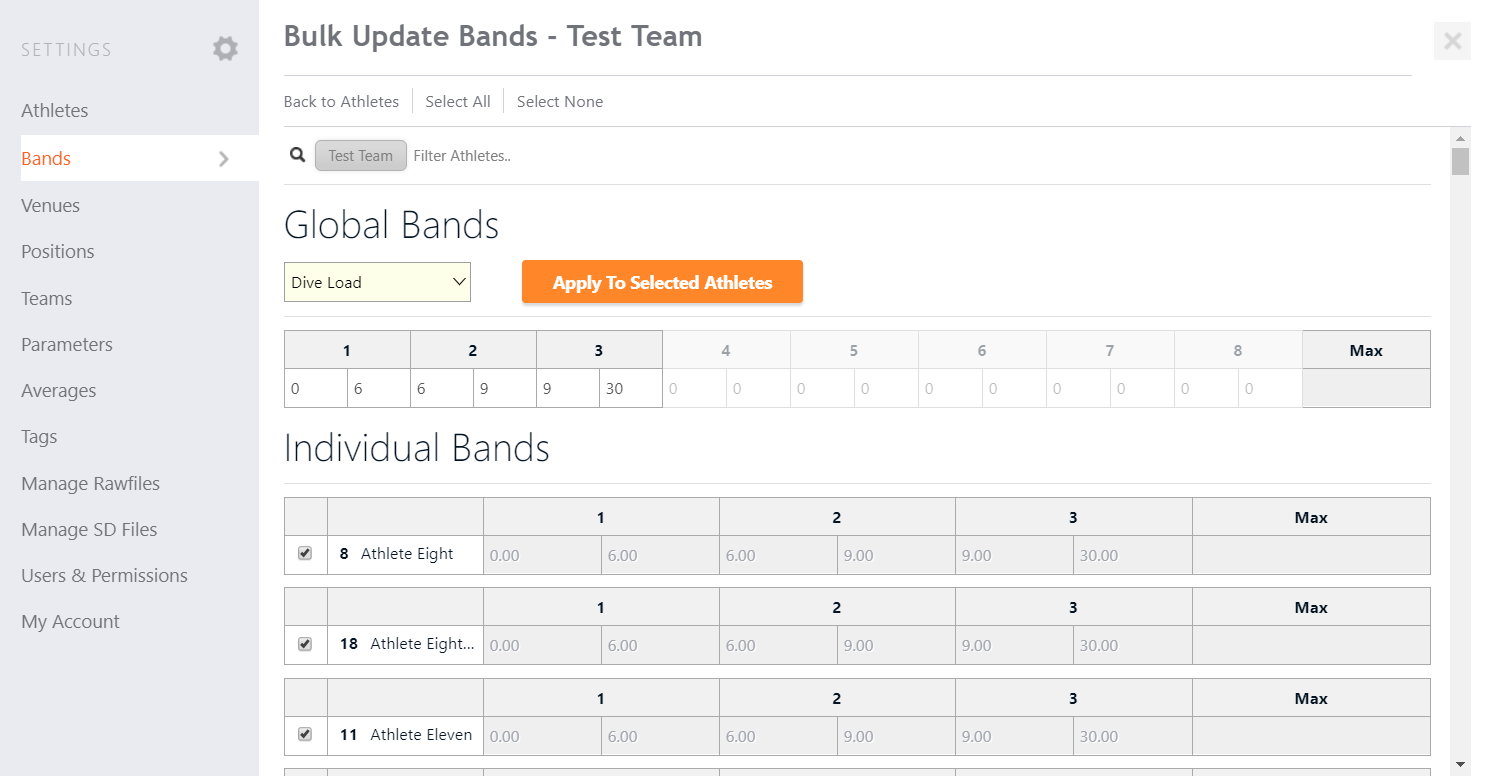

Navigate to: Settings > Bands

Dive Load Bands

Select Dive Load and configure bands for Goal Keeper athletes.

Default:

• 0–6

• 6–9

• 9+

Time to Feet Bands

Select Time To Feet and configure bands.

Default:

• 0–1

• 1–1.5

• 1.5+

If Using GK.V1 Only

Instead of the bands above, configure:

• IMA Dive Intensity

• IMA Dive Return

Sync to Console

Open OpenField Console and run a Sync to apply Cloud settings locally.

Detect Goal Keeper Dives in OpenField Console

Vector 7 Users

1. Download sessions from G7 devices
   OR
   Reprocess existing raw files
   See Downloading Data from Devices and Reprocessing Raw Files/Session Data for more information

2. Open the Activity and run a Fast Bake
   See Baking Activities for more information

Vector 8 Users

1. Connect Vector 8 Devices to Vector 8 Dock to upload device data to Cloud
   See Uploading Data from Vector 8 Devices to Cloud
2. Download Data back to Console
   See Downloading 10Hz and 100Hz Data Back to Console

Display Dive Events (All Users)

3. Open the Activity
4. Graph the Goal Keeper athletes. See Graphing Data for more information

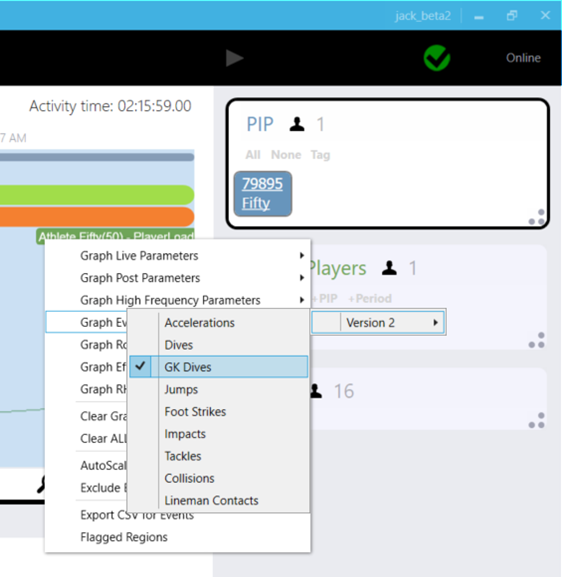

5. Right-click the athlete name at the end of the velocity trace/graph

6. Select:

   • Events > Version 2 > GK Dives (for GK.V2)

   • Events > Dives (for GK.V1)

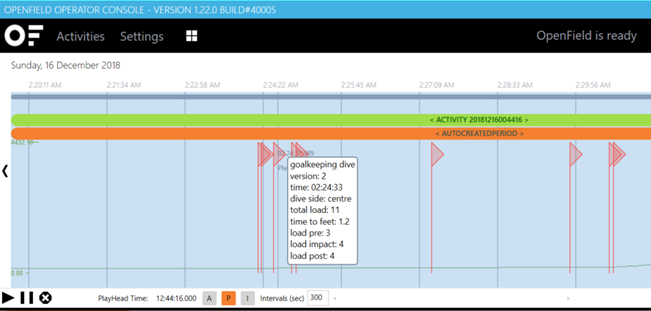

Dive events will appear as flags on the timeline.

View Dive Details

• Hover over event flags to view:

  • Individual dive data

  • Grouped dive data (if overlapping)

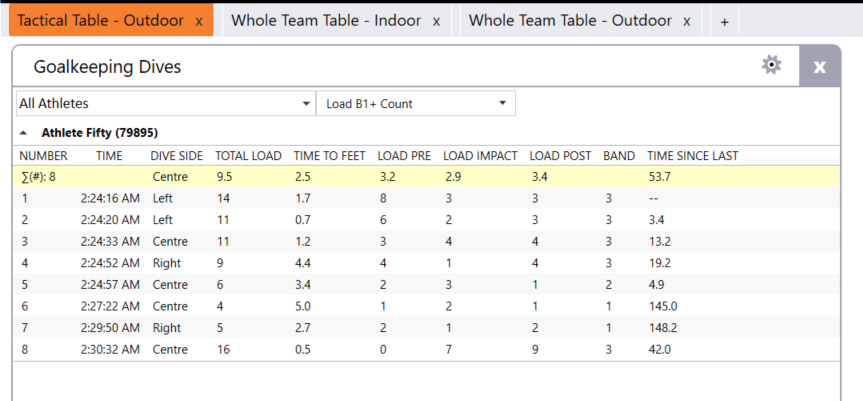

Add the Goal Keeping Widget (GK.V2 Only)

1. Create a new Console Widget

2. Select: Events/Efforts >Goal Keeping Dives

This displays dive-by-dive breakdown per athlete. See Console Widgets for more information.

Sync Back to Cloud

Run a Sync from Console to push processed dive data to the Cloud for reporting.

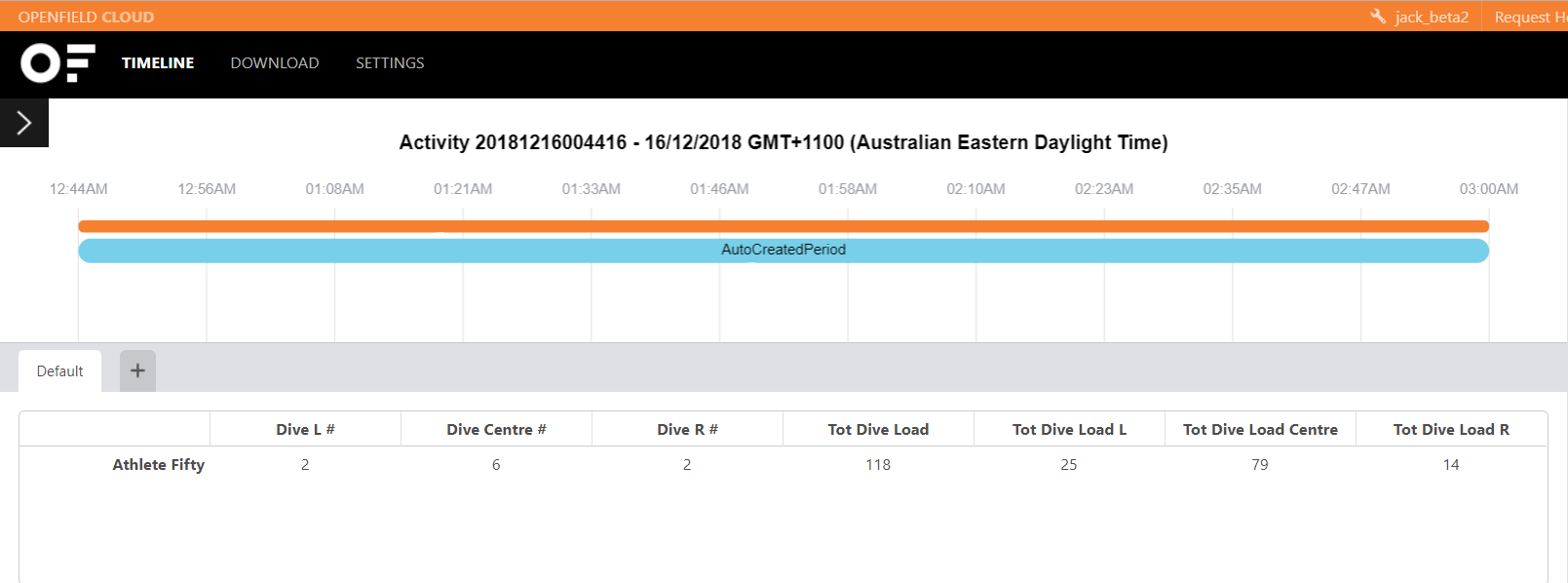

View Dive Data in OpenField Cloud

1. Navigate to the Activity in OpenField Cloud

2. Create a Cloud Widget

3. Select parameters from:

   • GoalKeeping (V1)

   • GoalKeeping (V2)

4. Load the relevant Activity

Dive metrics will now be available for analysis and reporting. See Cloud Widgets for more information.
