How to Detect Cricket Metrics

What is the Cricket Analytics Suite?

The Cricket Analytics Suite developed by Catapult uses inertial sensor derived algorithms to detect Cricket specific events, such as Deliveries. Identification of these events allows for a host of Cricket specific bowling Parameters to be defined. Thereby, allowing practitioners to make more informed decisions on load management whilst also providing Cricket specific performance insights.

How to setup the Cricket Analytics Suite?

1. An OpenField Cricket module and plugin must be applied to your account. If you want to add the module/plugin please contact support for assistance.

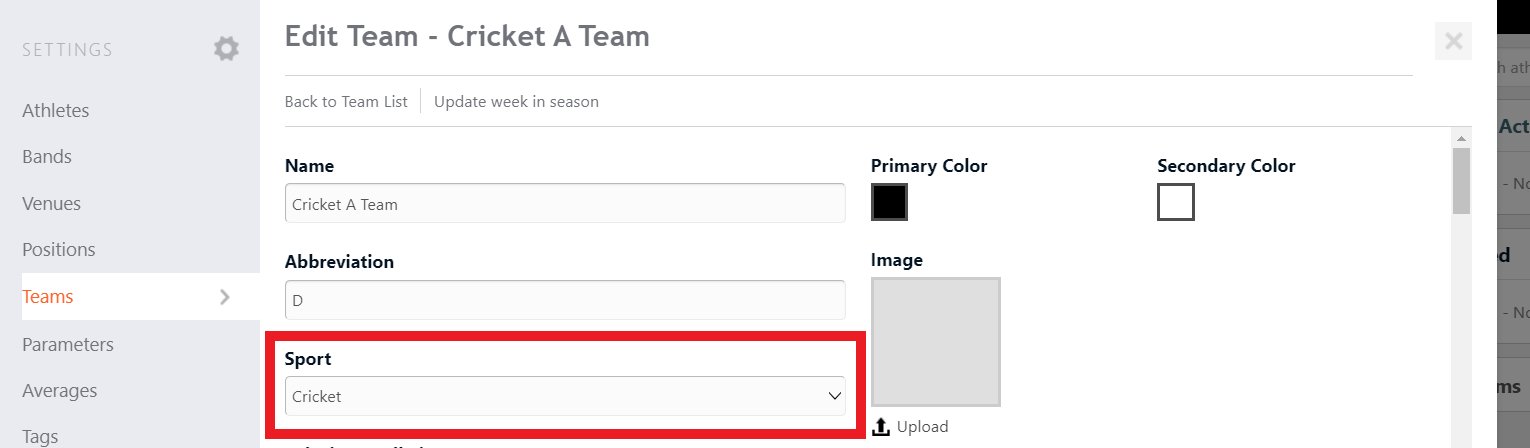

2. The default Team's sport must be set to Cricket:
   1. Navigate the OpenField Cloud > Settings > Teams.
   2. Click on the Team to be edited.
   3. Select Cricket from the Sport drop down menu.

3. For collecting and analyzing Cricket data live, Vector S7 devices with 6.10 [Cricket] firmware are needed as well as an OpenField console version 2.4 or later.

Detecting and Viewing Cricket Metrics in the OpenField Console

Detecting and analyzing Cricket Metrics in the OpenField Console can be done Live (in real time) or post Activity.

1. Open the Activity with the OpenField Console.
2. Graph the desired athletes. See Graphing Data for more information.

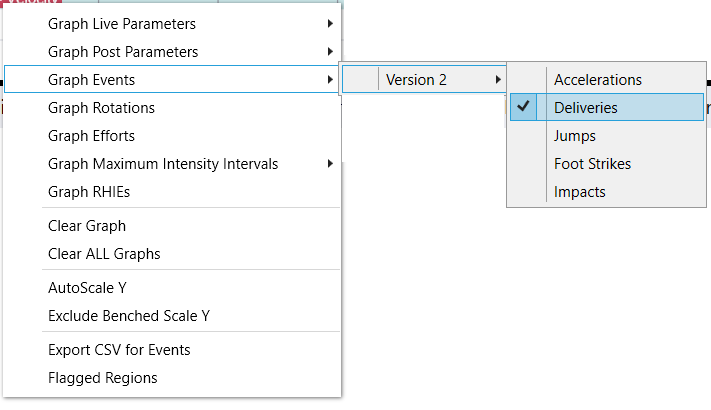

3. Right click on one of the Athlete's Name at the end of the Velocity Trace/Graph then select Events > Version 2 > Deliveries.

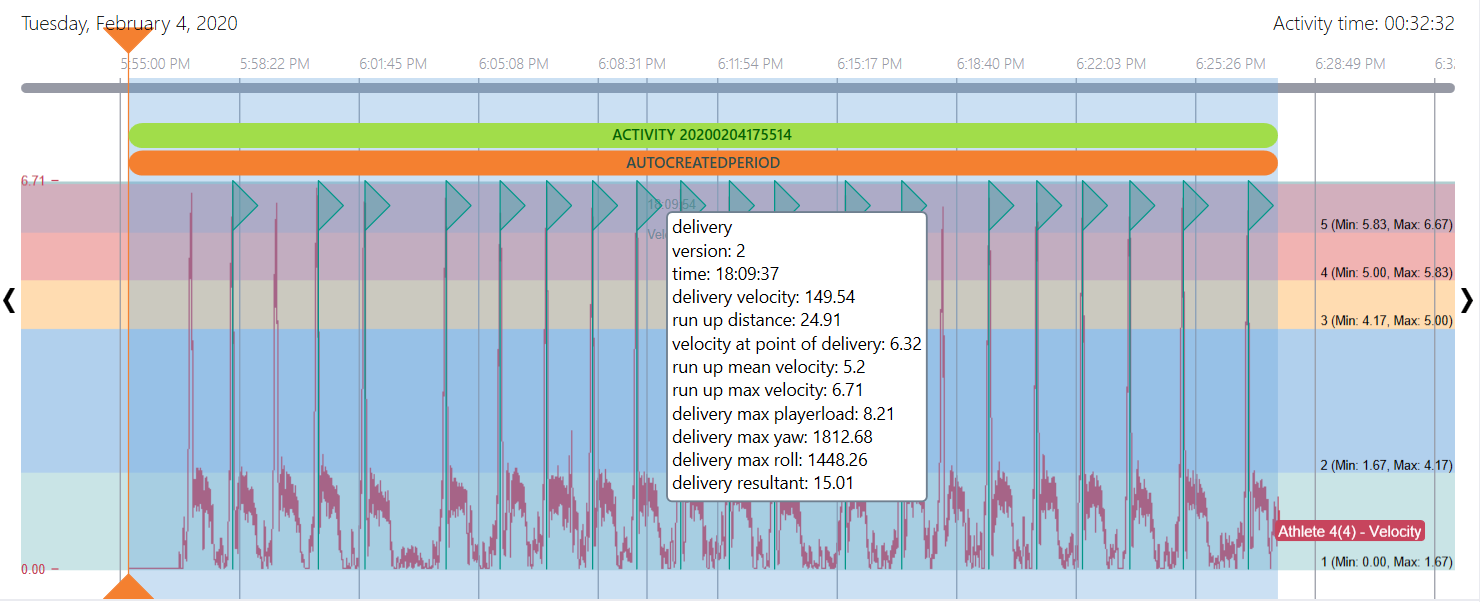

4. Hover over each event flag for a summary of individual or grouped Delivery data.


5. Create a new Dashboard if desired.

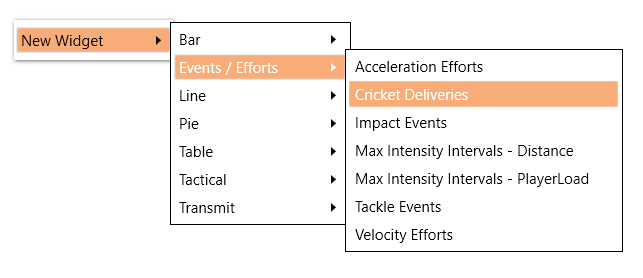

6. In any Dashboard, right click on any white space on the Dashboard > Select New Widget > Select Efforts / Events > Select Cricket Deliveries. See Console Widgets for more information.

7. Select the athlete(s) from the drop-down menus to view data for all or each individual athlete. Please note, that any Velocity-based units of measurement within the Cricket Deliveries Events Table will ALWAYS display in metres per second, despite what units you have set in the cloud.


8. Sync from the OpenField Console to send data to the Cloud for analysis.

Viewing Cricket Metrics on OpenField Cloud

Detecting and analyzing Cricket Metrics in the OpenField Cloud can only be post Activity.

1. Navigate to the OpenField Cloud and create a Cloud Widget and Render it as a Table.
   See Cloud Widgets for more information.
   Widget Settings > Basic Tab > Render As - Table.

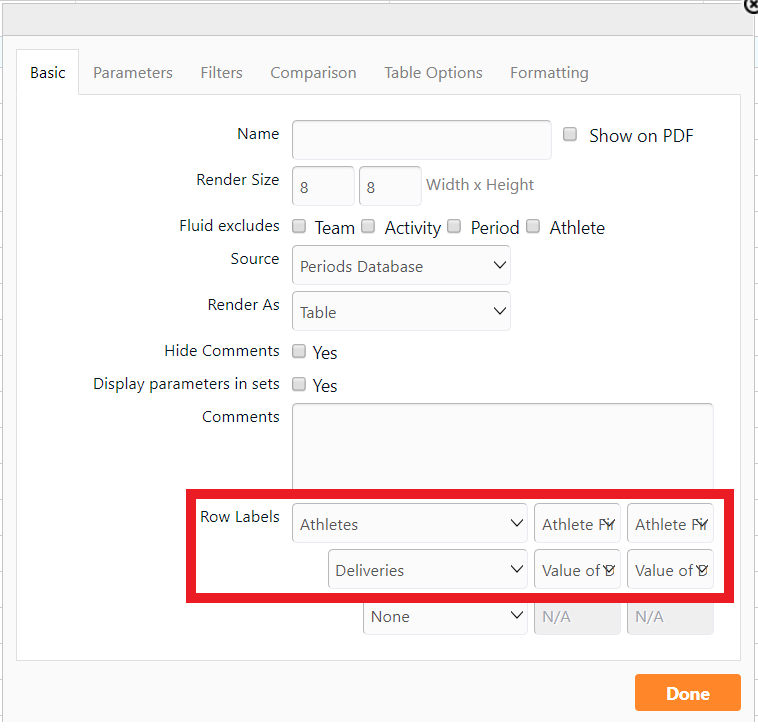

2. To view Event by Event data in the OpenField cloud, ensure Deliveries is selected as a Row Label from the Basic Tab.
   Widget Settings > Basic Tab > Row Labels > Deliveries.

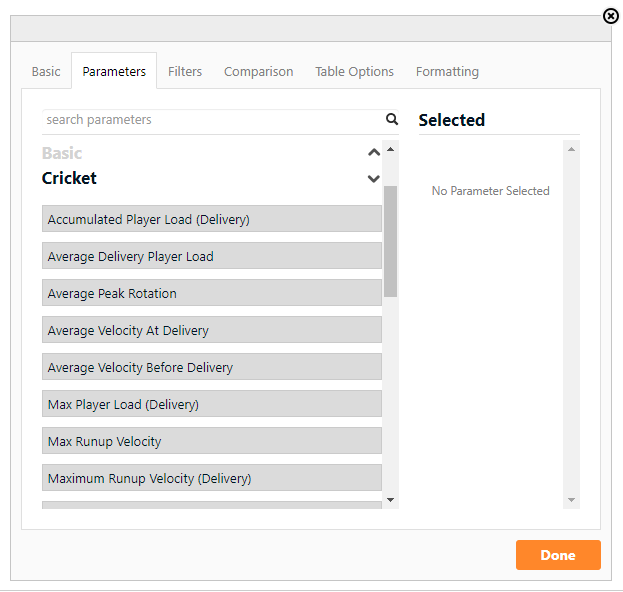

3. From the Parameters Tab, select any metric from the Cricket category .
   Widget Settings > Parameter Tab > Cricket > select any Parameter.

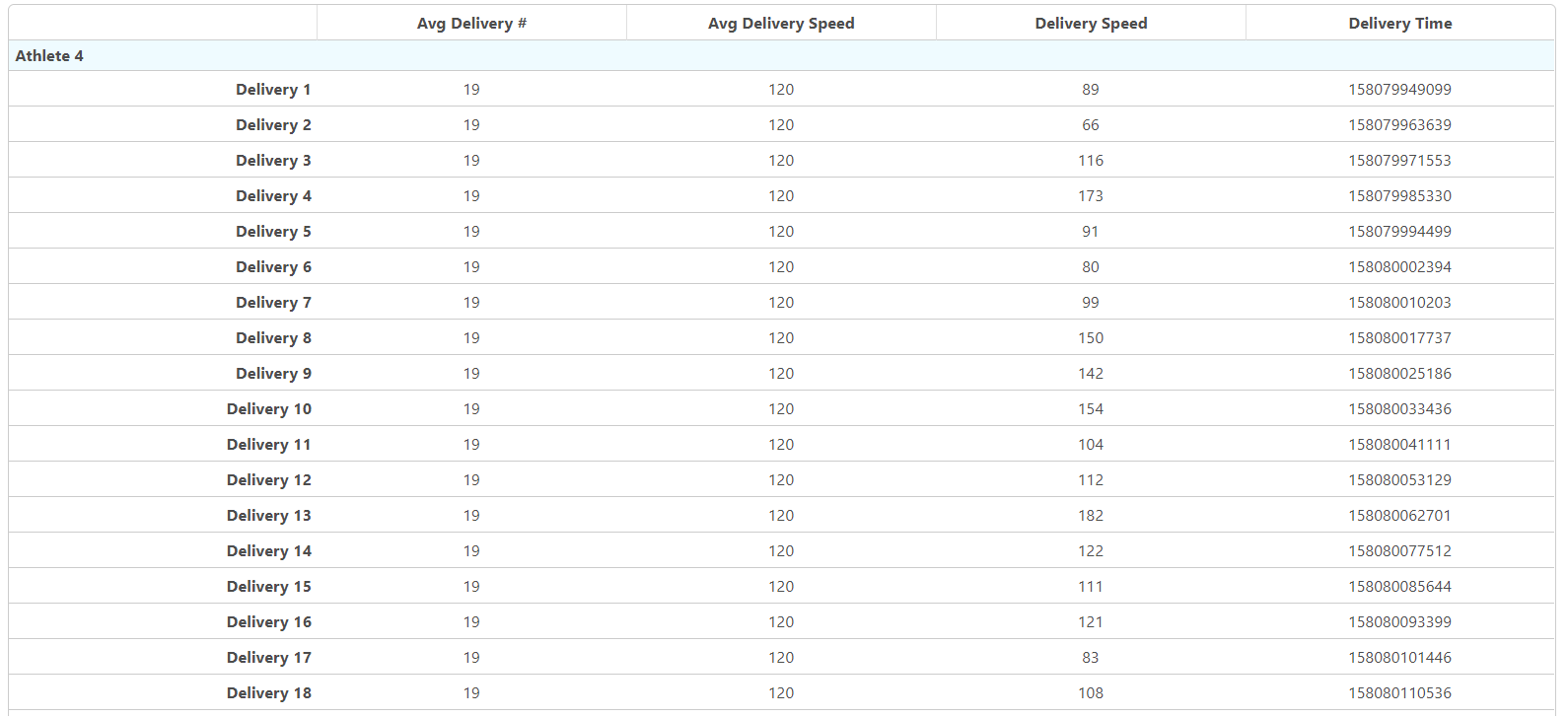

4. Load the appropriate Activity(s) and view the Data in the widget.



Cricket Parameter Definitions

Cricket Parameter definitions are not made Public, please contact your Sport Scientist directly or contact support for more information.
