Mapping an Athlete to a Device for an Activity

All other device athlete mappings will take place in the Console.

HOW TO MAP DEVICES TO ATHLETES

1. In OpenField Cloud, load the desired activity in the Editor page.

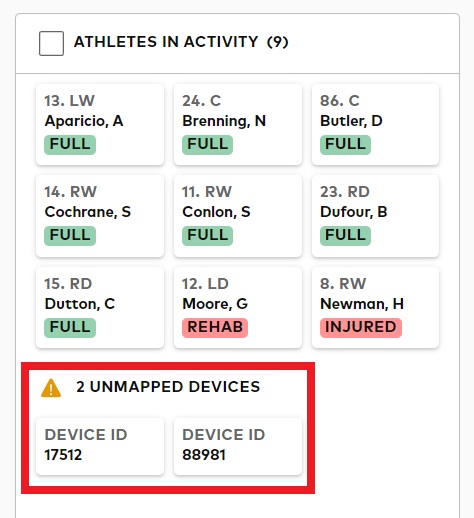

2. When there is an unmapped device for an activity it will appear under the Unmapped Devices section of the Athletes in Activity panel.

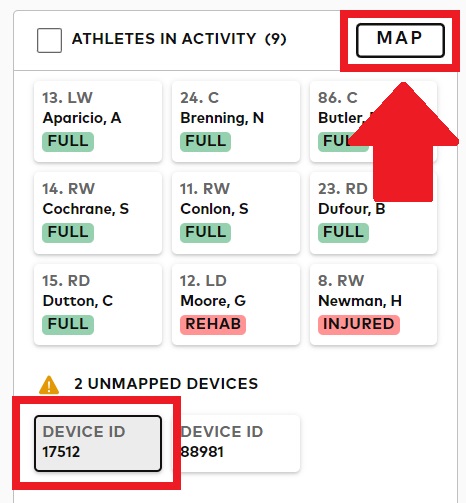

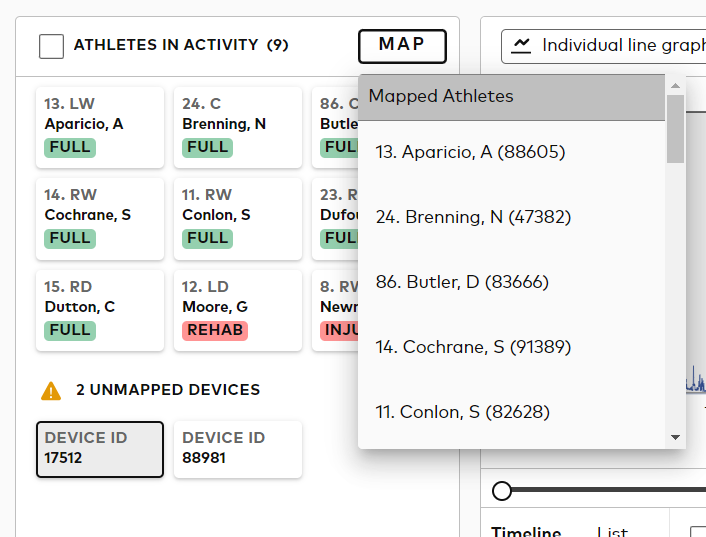

3. To assign an unmapped device to an athlete, select an unmapped device card and click the Map button. A list of athletes will populate, select the desired athlete to map the device to.



   Note: Only one device can be mapped at a time. If more than one unmapped device cards are selected the Map button will be greyed out.

HOW TO UNMAP DEVICES

1. In OpenField Cloud, load the desired activity in the Editor page.

2. Hover over an Athlete card to view their currently mapped device.

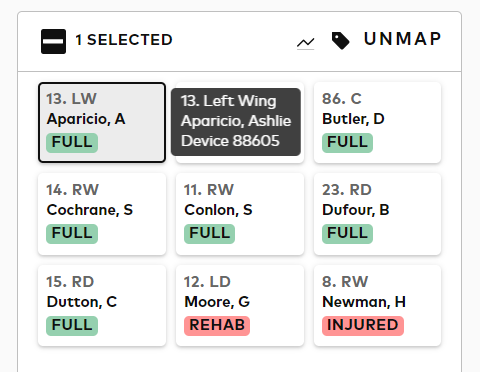

3. To unmap an athlete, click on an individual athlete card and select the Unmap button at the top of the Athletes in Activity panel.



   Note: Only one Athlete can be unmapped at a time. If more than one Athlete cards are selected the Unmap button will be greyed out.

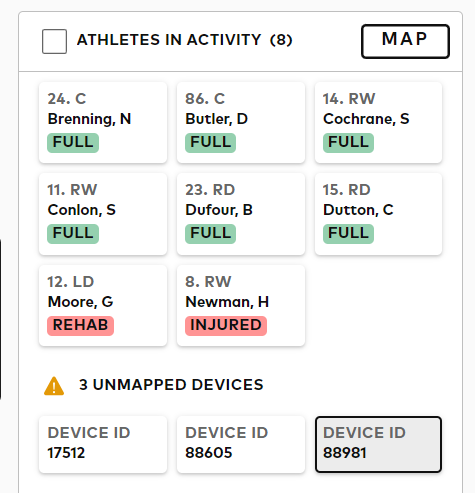

4. When the Athlete is unmapped their Athlete card will no longer appear, and their previously mapped device will appear in an Unmapped Devices section.
