Athlete Rotations

Rotations allow you to remove an athlete from a specific interval of time within a Period, ensuring you capture accurate intensity data.

Accessing the Rotations Tool

1. Navigate to the Web Editor.
2. Select the athletes you wish to graph.
3. Click the Graph athlete(s) button, or click and drag the athletes across the graph area.
4. Access the Rotations options by clicking R on your keyboard, or by selecting the Rotations tool icon.

Video Tutorial

Watch the following tutorial for a quick walkthrough of how to create Rotations within the Web Editor.

Creating and Editing Rotations

Creating a Rotation

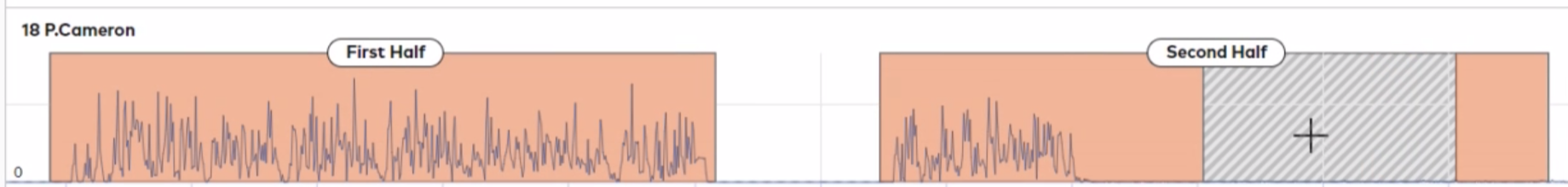

1. Ensure the Rotations tool is active.

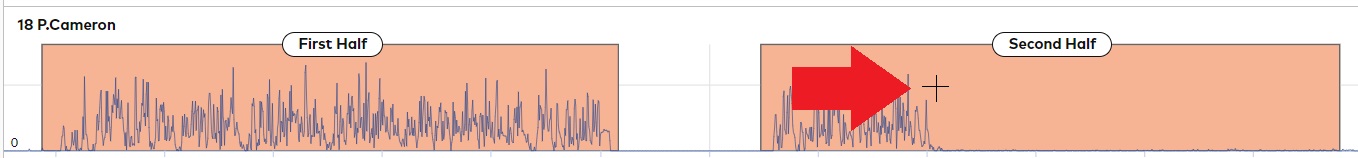

2. Click and drag over the specific section of the trace to designate the time out of the Period.
3. To apply a Rotation across multiple athletes simultaneously, click and drag vertically across their respective graphs.

• Example: Removing an athlete from the last 5 to 10 minutes of a drill when substituted
• Example: Filtering out an anomalous velocity spike in the middle of a Period

Editing or Removing a Rotation

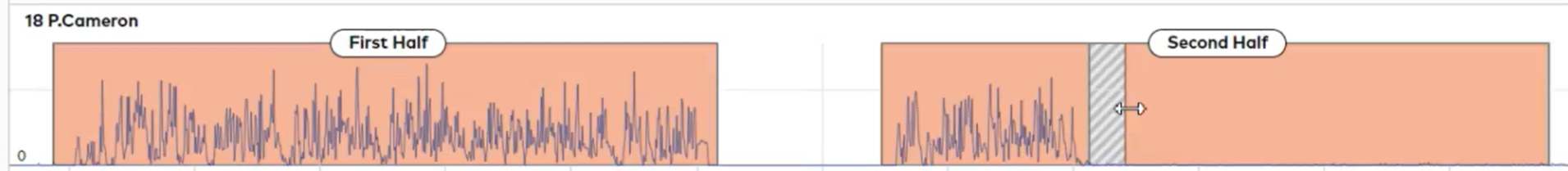

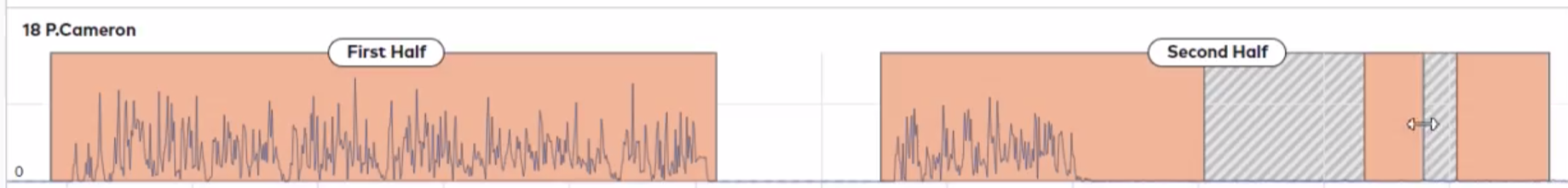

1. To edit an existing Rotation, click and drag over the edges of the Rotation block to adjust its duration.

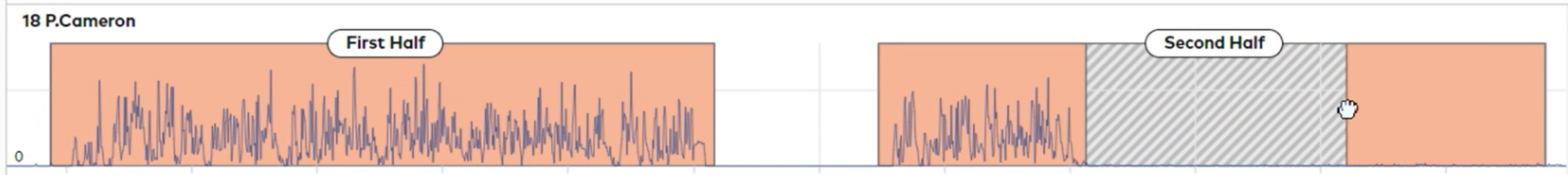

2. To remove a Rotation entirely, click and drag over the full event block to delete it.

Using the Apply to All Function

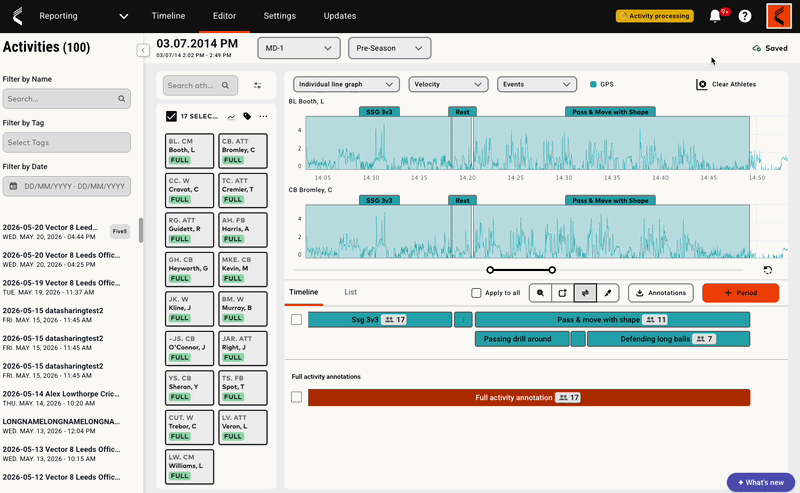

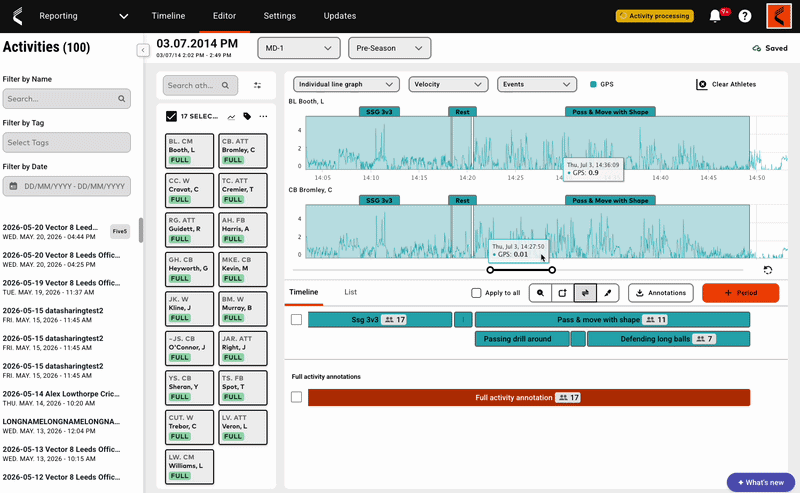

When managing numerous traces, it can be time-consuming to apply Rotations individually. The Apply to all function allows you to quickly assign a Rotation to all currently graphed athletes.

1. Click the Apply to all button on the toolbar.
2. Click and drag over the desired time period on the trace.
3. The system will automatically apply the Rotation to all athletes currently displayed on the graph.
