Vector Dock LED Behaviour (S7/G7)

Pat Souza
  • Updated

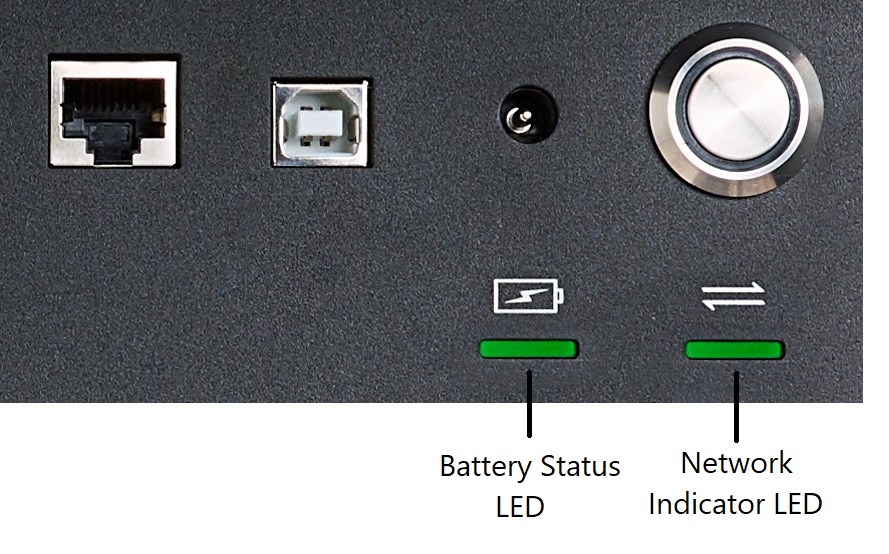

Where are the LEDs on the Vector Dock?

There are two LEDs located below the Power input and Power/Ignition Button on the Vector Dock.


What does each LED on the Vector Dock mean?

Battery status LED

Indicates the battery status when the Dock is powered on via the Power/Ignition Button and not charging.

Indicates when the Vector Dock is charging or completely charged.

Dock is powered on and not charging:

  • Solid Red = Battery Level < 30%
  • Solid Green = Battery level > 30%

Dock is in a charging state:

  • Solid Red = Charging
  • Solid Green = Fully charged dock

Network Indicator LED

Indicates when Data is being transferred between the Dock and the PC.
  • Flashing Green = The rate of flash relates to data transfer speed.
