How to Connect Vector Devices to the Computer (S7/G7 & T7)

How to Connect Devices to your Computer

1. Place the Vector Devices into their individual charge case slots in the Vector Dock.

2. Connect the Dock to a mains power source if you are not downloading from pitch side. For more information on Vector Docks features please see our articles: Vector Dock Overview (S7/G7) and Vector Dock Overview (T7)

Vector S7/G7 Dock

1. Connect the Dock to the PC via the USB Type B to USB Type A USB Cord.



2. Power on the Vector Dock by pressing the Dock Power button.

3. Allow the Vector Dock to initiate and turn on. This is indicated by the white LED around the Power Button flashing before stabilizing.

4. Once the Vector Dock is powered up the Vector Devices will begin to enumerate (communicate) with the Dock. The GPS LED on the Vector Device(s) will illuminate solid white once the Devices have enumerated.

Vector T7 Dock

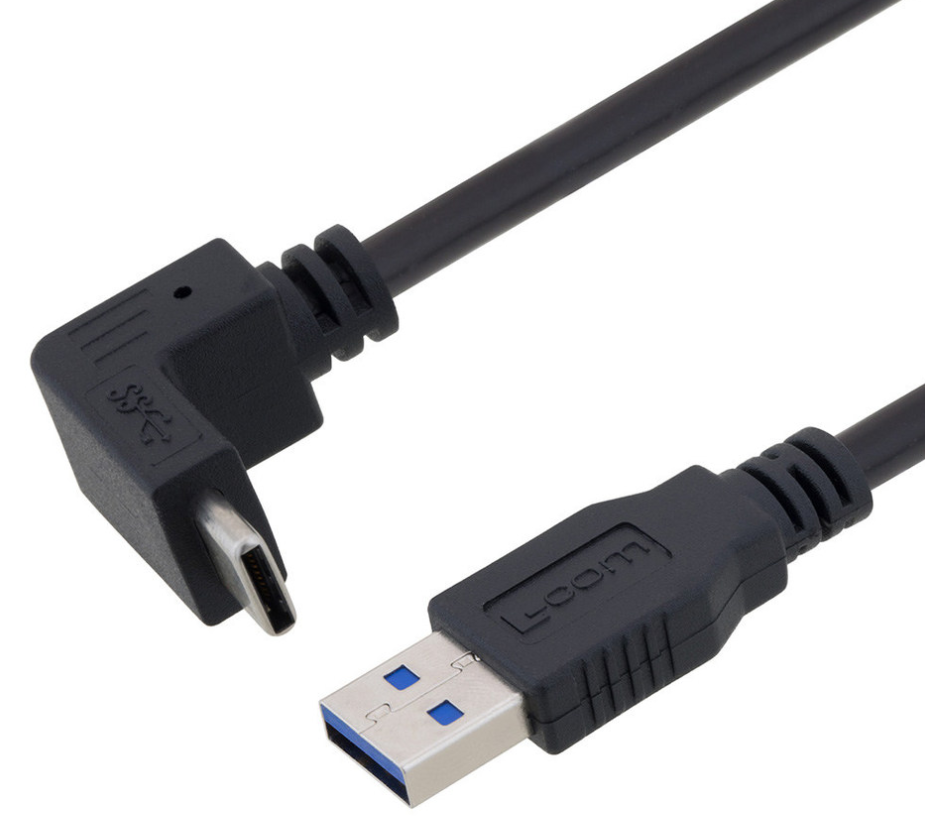

1. Connect the Dock to the PC via the USB Type C to USB Type A USB Cord.

2. Power on the Vector Dock by pressing the Dock Power button.

3. Allow the Vector Dock to initiate and turn on. This is indicated by the solid white LED around the Power Button.

   Note: the Vector Dock must be On and not in Standby.

4. Once the Vector Dock is powered up the Vector Devices will begin to enumerate (communicate) with the Dock. The UWB Wireless Status LED on the Vector Device(s) will illuminate solid white once the Devices have enumerated.

How to Download Sessions from Devices

1. Open the OpenField Console and select Data Transfer from the main tile screen to Download sessions from Devices. For more information on how to download data, please see our Downloading Data article.
