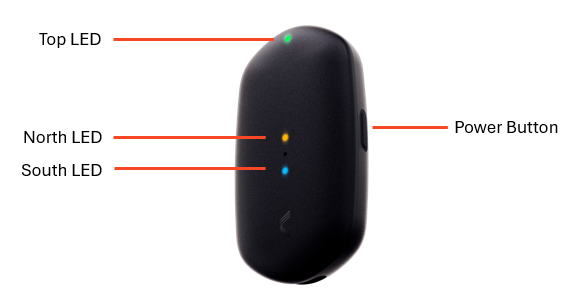

Where are the LEDs on the Vector Device?
- Status LED indicators are located on the front of the Vector device
Powering ON and OFF
- The S8 can be powered on and off using the button on the side, using the Ignition Mode feature, or by inserting the tag into a powered on Dock
- When the device is powering on or off, the LEDs will glow white from North to South.
- When the S8 wearable device is powering on all three LEDs will do a single ‘breath’ on
- When the S8 wearable device is powering off all three LEDs will do a single ‘breath’ off
What does each LED indicator on my Vector Device mean?
The LEDs are colour coded and represent different statuses depending on the Vector Devices being in a recording mode or inserted into the Vector Dock.
Device in Recording Mode
2 minutes after entering recording mode, the brightness of the Vector S8 LEDs will dim. If the Power Button is pressed during this two minutes, the timer will be restarted. To bring the LED brightness back to 100% after it has dimmed, short press the Power Button.
Top LED - Battery Status |
|

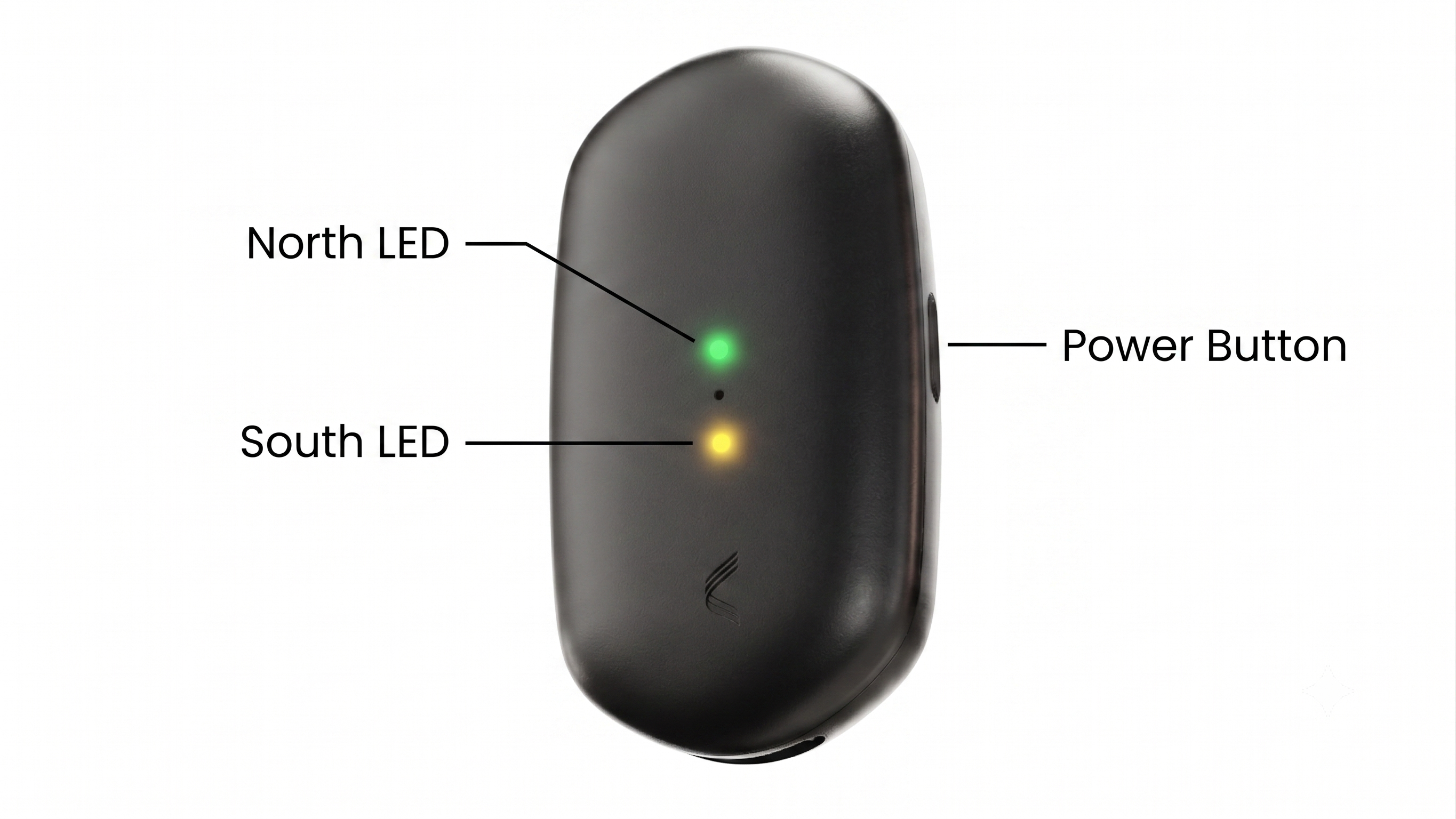

North LED - GNSS Status |
|
South LED - Ultra-Wideband Wireless Status |
|

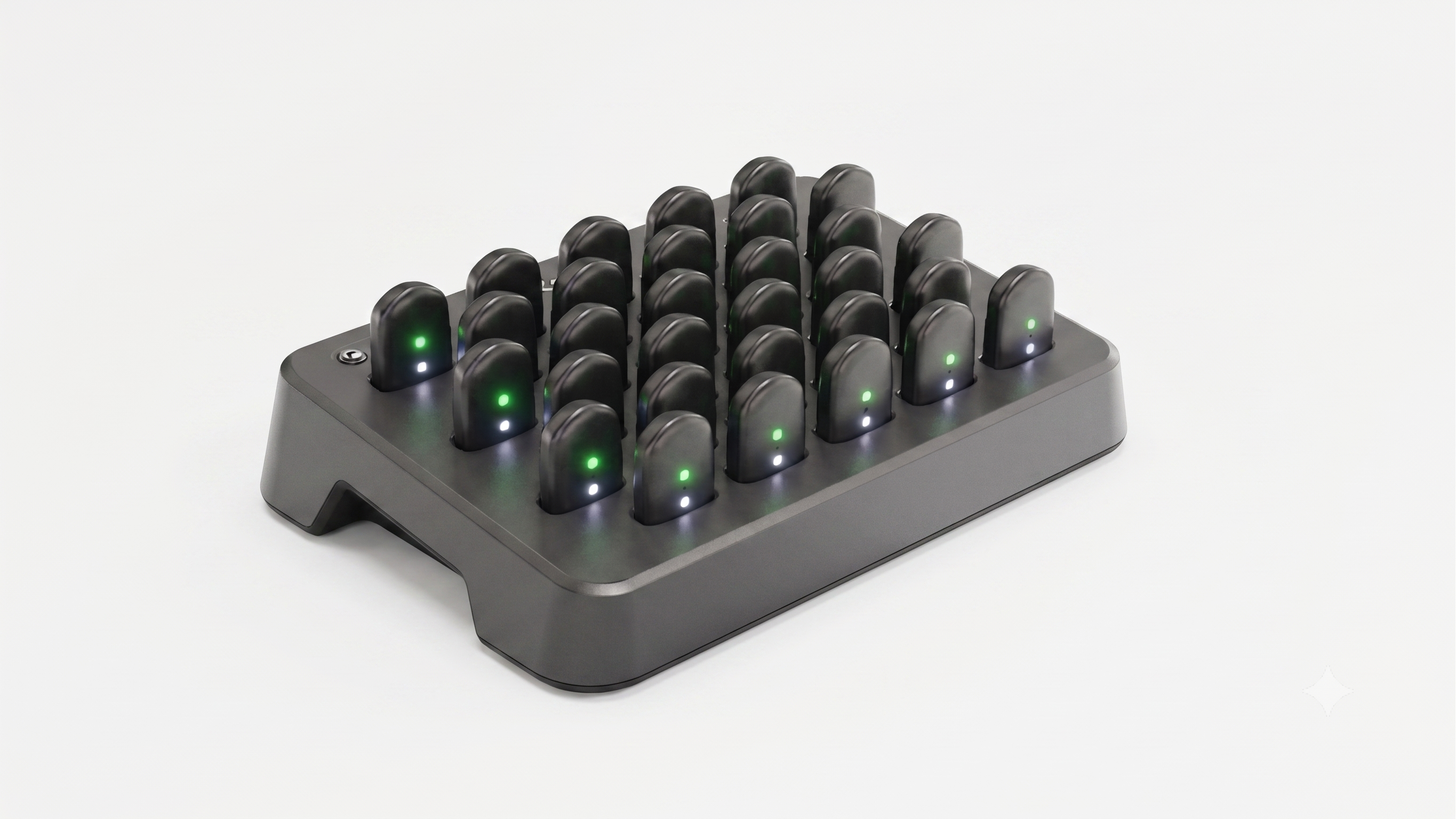

Device Docked
Top LED - Battery Status |
|
North LED - GNSS Status |
|
South LED - Ultra-Wideband Wireless Status |
|
