How to View the Receiver Status During a Live Activity (iPad)
Note: Receiver Status is only available in Vector Live versions 2.1 to 2.5.
For Vector Live Version 2.5 or above please see Device View for more information on receiver status.
- Power on the Vector Receiver(s) by holding the power button for ~2 seconds.
- Connect the Vector Access Point Receiver to the iPad via Wifi.
- On the iPad, navigate to Settings -> Wi-Fi.

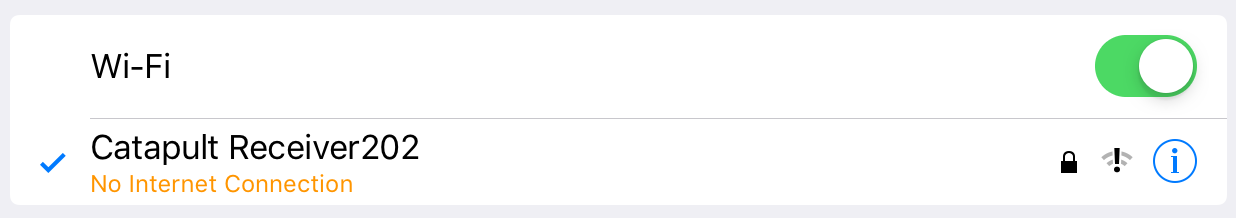

- The Wi-Fi network will be named 'Catapult Receiverxx', where xx = Receiver ID, located on the rear of the Receiver.
- Press the Receiver Network and enter in the password located on the back of the Receiver.
- Open Vector Live and check for receiver connection in the top right corner of the App.

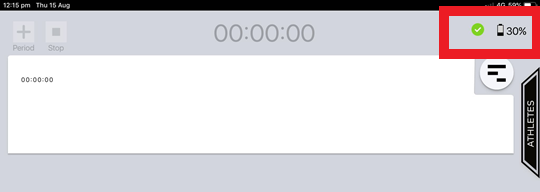

A single Vector Receiver Connection is indicated by a green icon directly beside the Vector Receiver battery status in the top right corner of the Vector Live App.

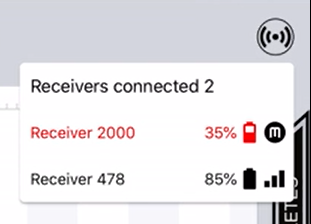

A multi Vector Receiver setup is indicated by a Receiver Status icon as seen below. Click and hold the Receiver Status Icon to view more information about each of the connected Vector Receivers.
Receiver Status Symbols
 |
Indicates the overall status of the connected Vector Receivers Red = A Secondary Receiver is disconnected or Battery is below 5% |
 |
Indicates if the connected Receiver is a Master Receiver |
 |
ID of the Vector Receiver |
|
|
Indicates the Battery Status
Black = Battery level is greater than 30% Amber = Battery level is less than 30% Red = Battery level is less than 5% |
|
|
Signal strength of secondary Receivers to the Master Red = Secondary Receiver is disconnected |
