Allowing OpenField Related Apps through Windows Defender Firewall

Steps to Allow OpenField Apps Through the Firewall

Follow these steps to ensure OpenField programs can communicate through your Windows Firewall.

1. Open Windows Firewall Settings

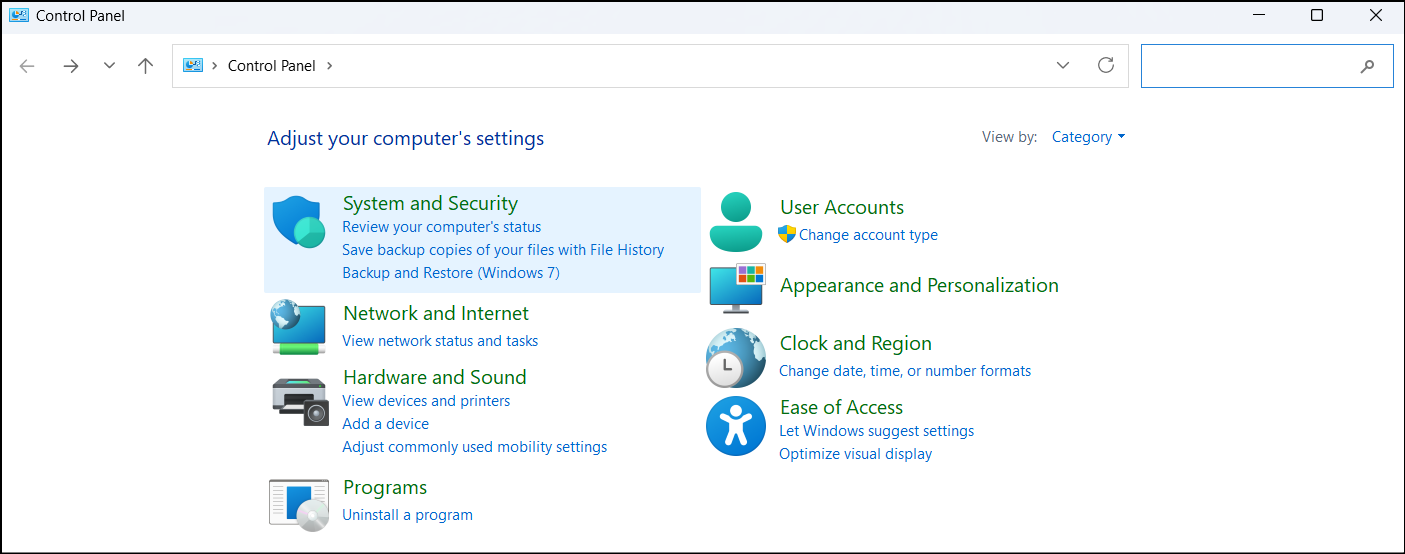

• Open the Control Panel on your computer. You can search for “Control Panel” from the Windows Task Bar.

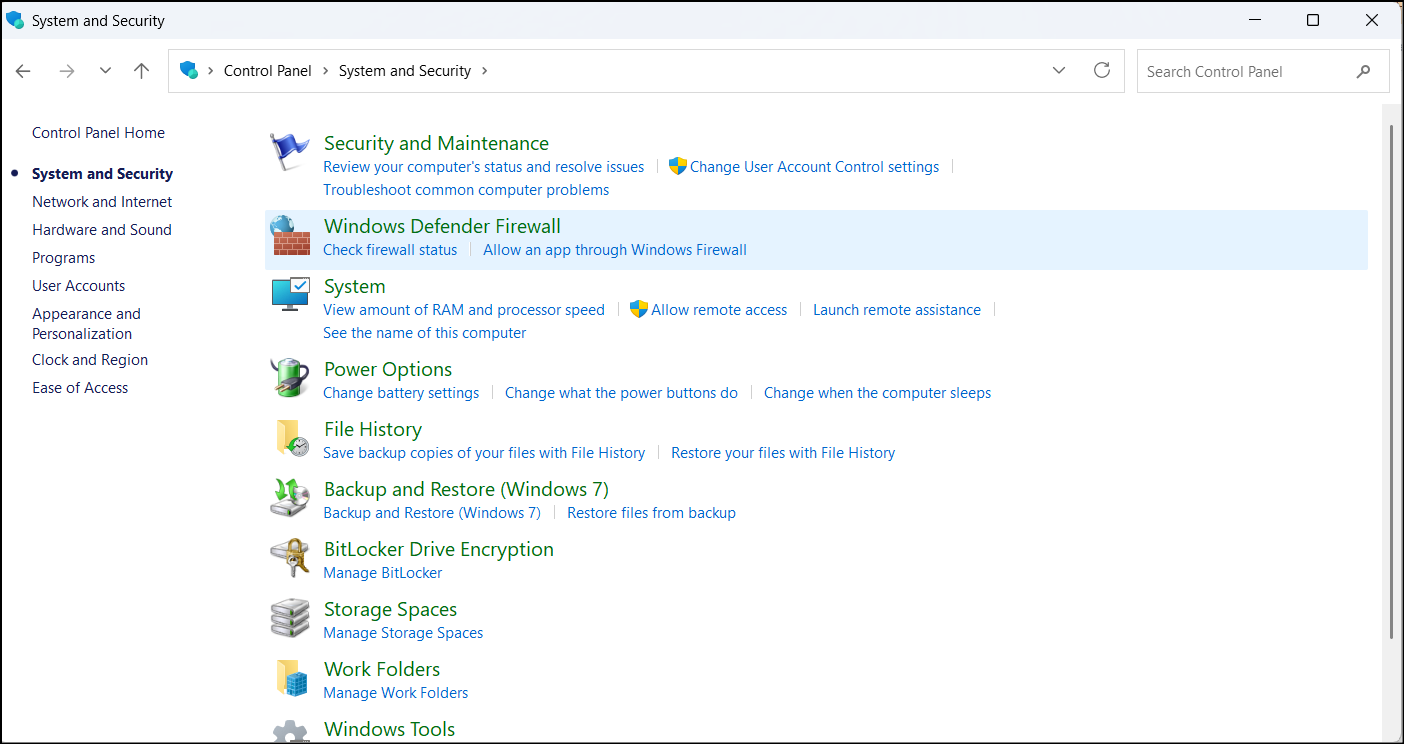

• Select System and Security, then Windows Defender Firewall.





2. Allow an App or Feature

• In the left-hand menu, select Allow an app or feature through Windows Defender Firewall.

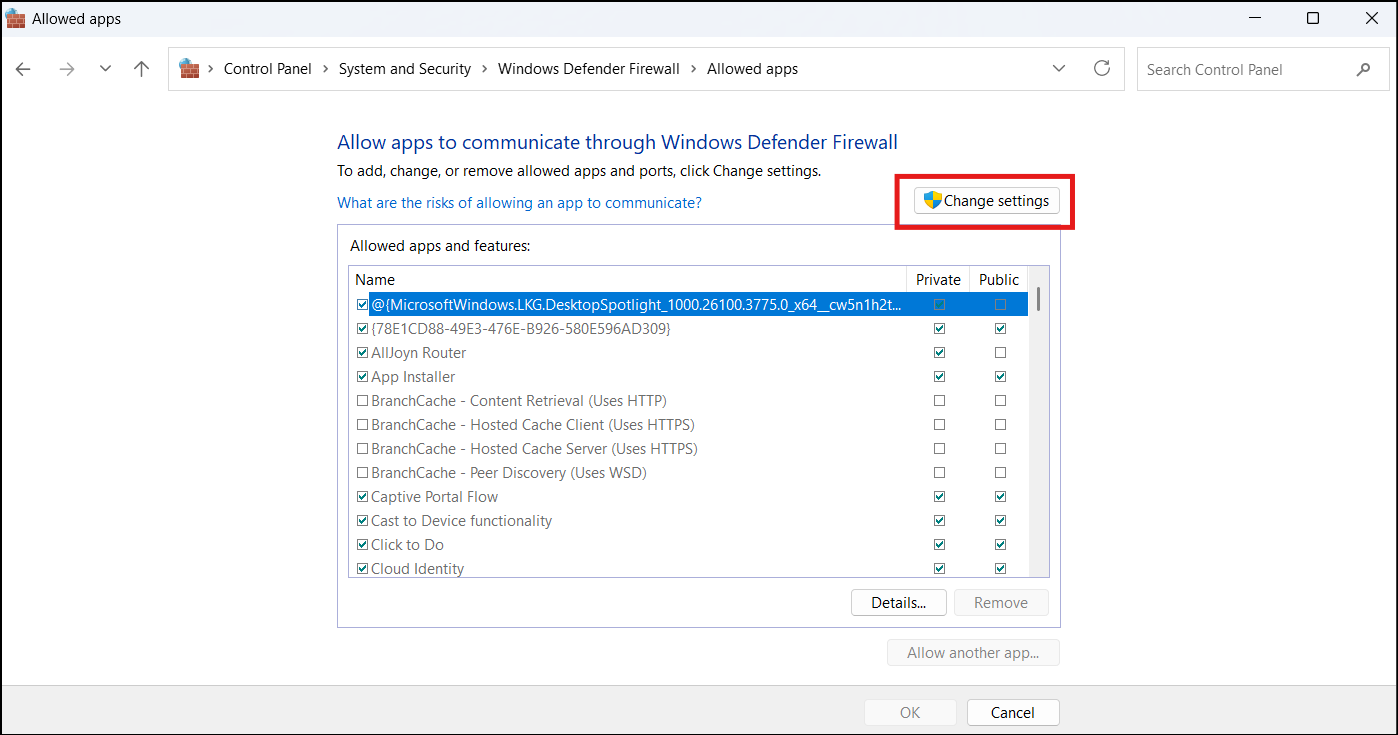

• Click Change settings in the top-right corner of the window.



3. Add OpenField Programs

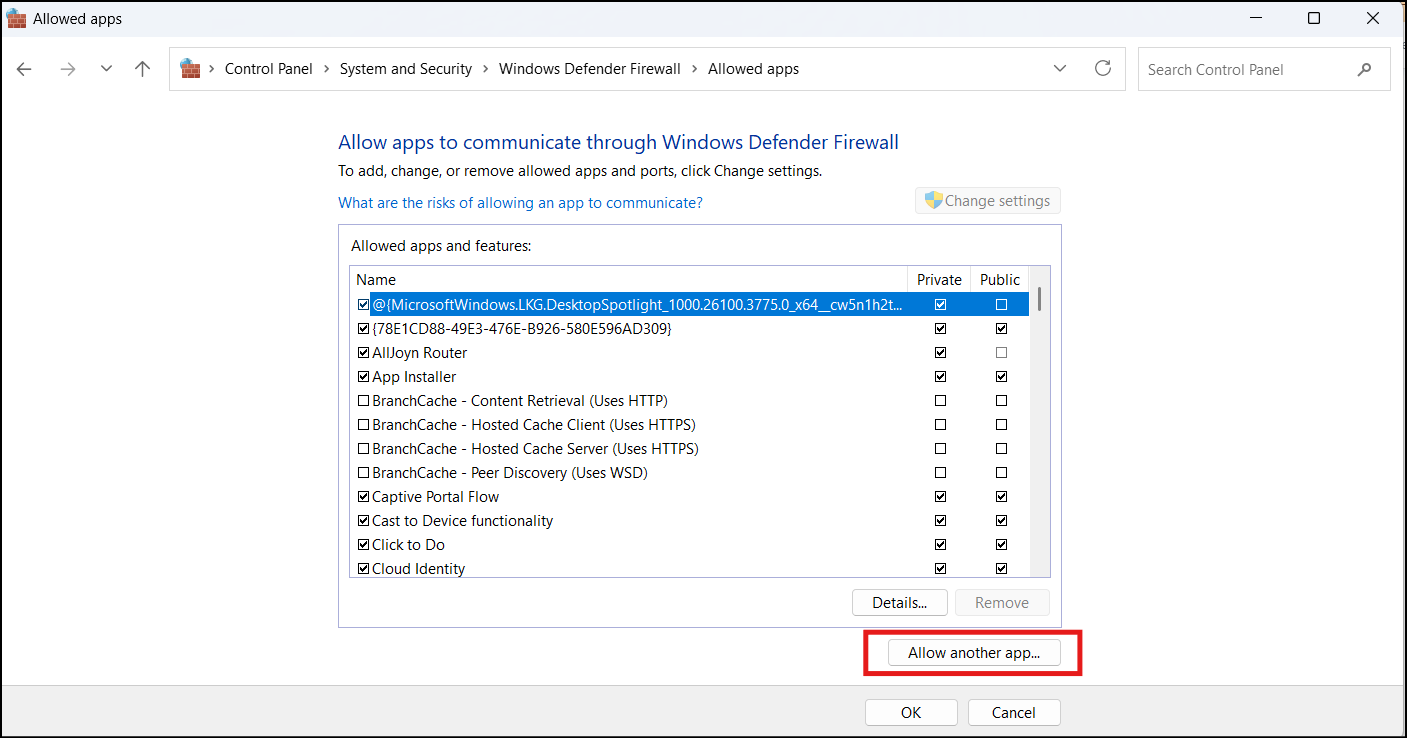

• Click Allow another app…

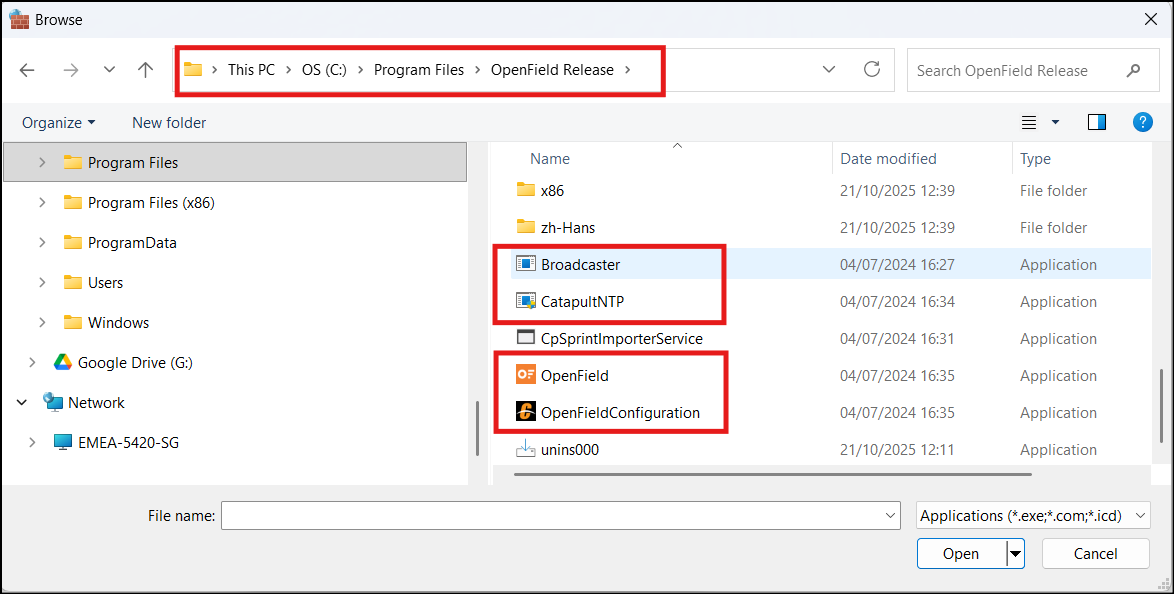

• Click Browse, then navigate to:

  C:\Program Files\OpenField Release
  Note: The OpenField Release folder will only be available once you have installed the OpenField software.

• Select each of the following programs one at a time, then click Open:

  • Broadcaster.exe

  • CatapultNTP.exe

  • OpenField.exe

  • OpenFieldConfiguration.exe

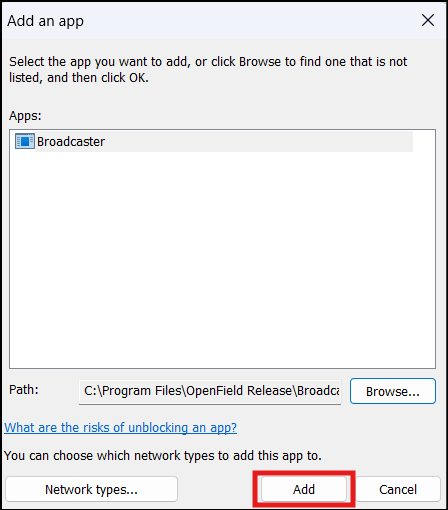

• Click Add for each program.

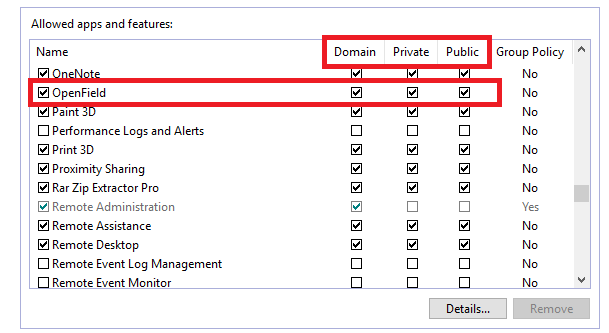

4. Allow Through All Firewalls

In the Allowed apps and features list, ensure each program is checked for:

• Domain

• Private

• Public

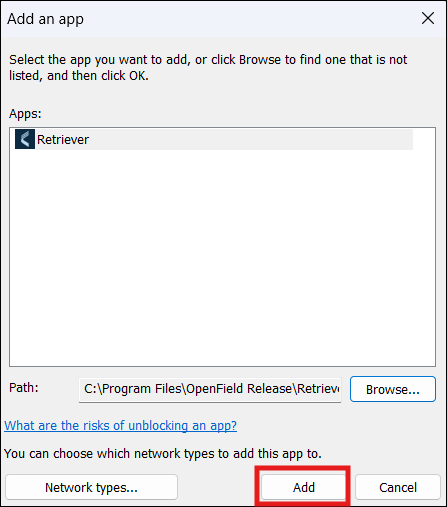

5. Add Retriever.exe

• Repeat Step 3 to add another app.

• Browse to:

  C:\Program Files\OpenField Release\RetrieverExe

• Select Retriever.exe and click Add.



6. Add Python.exe

• Repeat Step 3 to add another app.

• Browse to:

  C:\Program Files\OpenField Release\RetrieverExe\PythonExe

• Select Python and click Add.

7. Complete the Process

• Once all programs are added and allowed through all firewalls, click OK to save your changes.

Troubleshooting

• If you still experience issues, temporarily disable or uninstall any antivirus programs on your PC.

• If the problem persists, please contact support for further assistance.
