Hudl SportsCode Data Import

Contents of Article

1. What are the different SportsCode Data Imports

2. How to import classic SportsCode Data in OpenField version less than 3.3

3. How to import SportsCode Data into OpenField version 3.3+

What are the different SportsCode Data Imports

Any OpenField Console can import the classic SportsCode exported XML but only OpenField Console builds 3.3+ can import a Hudl Sportscode XML.

This file can be exported from your SportsCode software by selecting the timeline (and specific timeline instances) and exporting as a single XML file. Once exported, this XML file needs to be copied to your OpenField laptop.

Note: When using SportsCode, we recommend your coding window include a ‘Start’ code. This ‘Start’ code MUST be selected at the beginning of each period (e.g. 1st half; 2nd half). This will enable SportsCode to be correctly aligned with the periods created in OpenField.

How to import classic SportsCode Data in OpenField version less than 3.3

1. In any OpenField Console build below build version 3.3, load the Activity that you wish to import the SportsCode Data into.

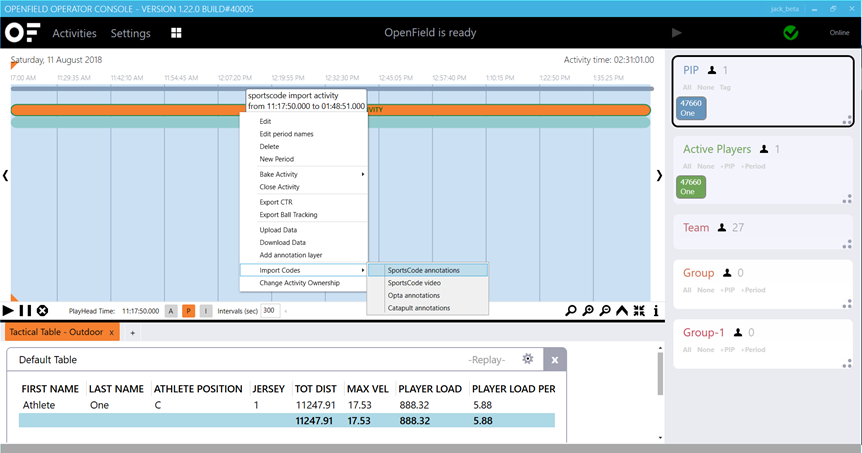

2. Once the Activity is loaded, right click on the Orange Activity Bar and select 'Import Codes', followed by 'SportsCode Annotations'

3. In the Import Window Hit 'Select File' and search for your exported XML file from SportsCode

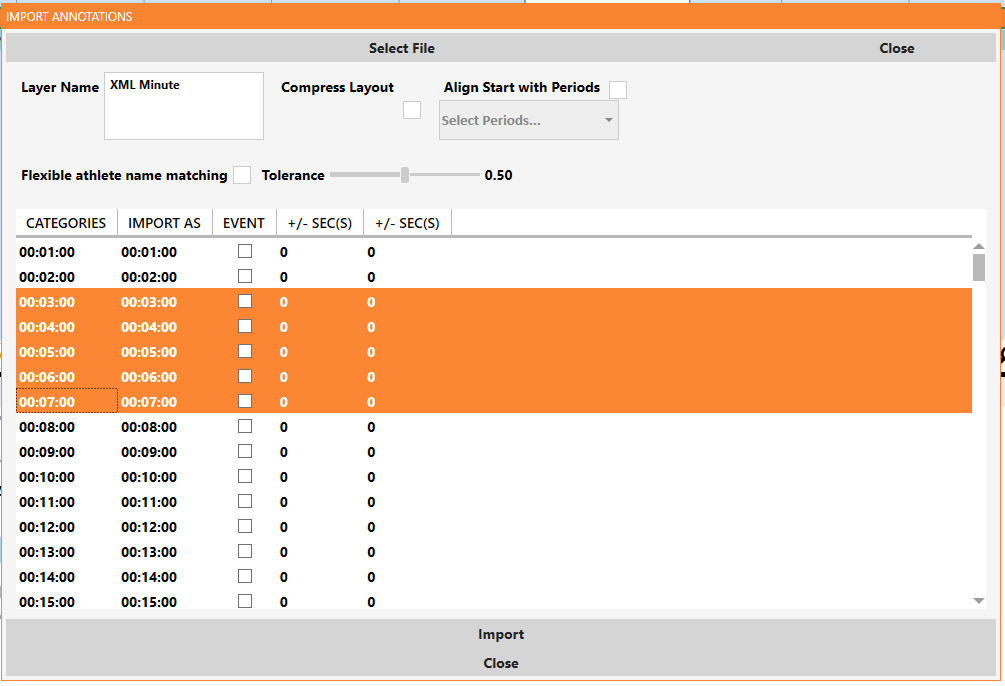

4. Click to highlight the desired Categories rows (SportsCode Code name) you wish to import. To select multiple categories, press Shift then click each category. NOTE: Ensure the box in the Event column is not checked. Please see screenshot below.

5. Check the box next to 'Align Start With Periods' and select the Period from the drop down menu that you want to align the start with. Ensure 'Flexible Athlete Name Matching' is also checked.


6. Select 'Import' at the bottom of the menu.

7. The SportsCode Codes will appear in OpenField as Annotations

8. Perform a Fast Sync to sync up SportsCode imported Annotations to the Cloud for further analysis

How to import SportsCode Data into OpenField version 3.3+

1. In any OpenField Console version 3.3+, load the Activity that you wish to import the SportsCode Data into.

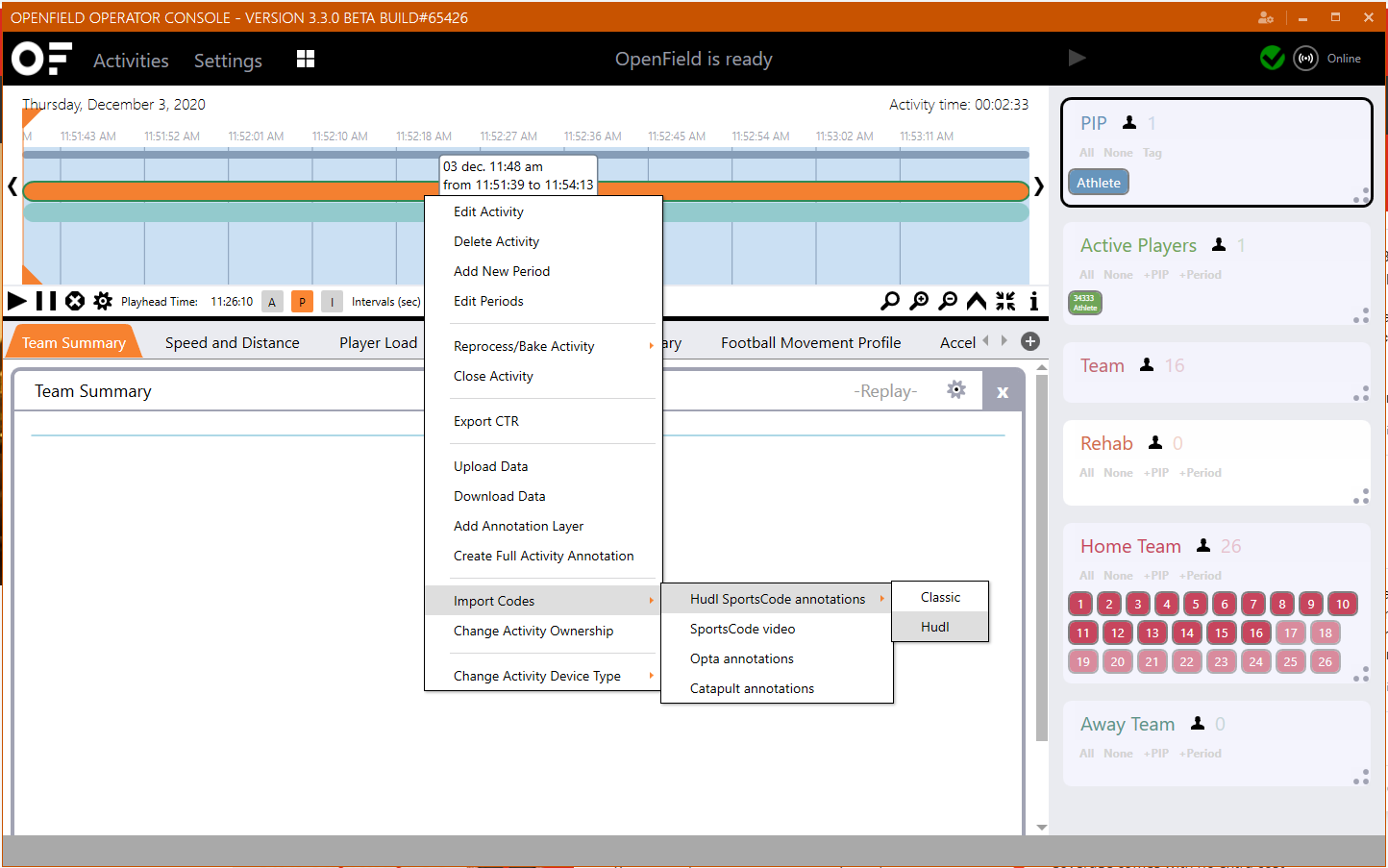

2. Once the Activity is loaded, right click on the Orange Activity Bar and select 'Import Codes', followed by 'Hudl SportsCode Annotations'.

3. Select 'Classic' for the classic Sportcode XML or click 'Hudl' for the Hudl Sportscode XML.

4. In the Import Window Hit 'Select File' and search for your exported XML file from SportsCode

5. Click to highlight the desired Categories rows (SportsCode Code name) you wish to import. To select multiple categories, press Shift then click each category. NOTE: Ensure the box in the Event column is not checked. Please see screenshot below.

6. Check the box next to 'Align Start With Periods' and select the Period from the drop down menu that you want to align the start with. Ensure 'Flexible Athlete Name Matching' is also checked.


7. Select 'Import' at the bottom of the menu.

8. The SportsCode Codes will appear in OpenField as Annotations

9. Perform a Fast Sync to sync up SportsCode imported Annotations to the Cloud for further analysis
