Overview

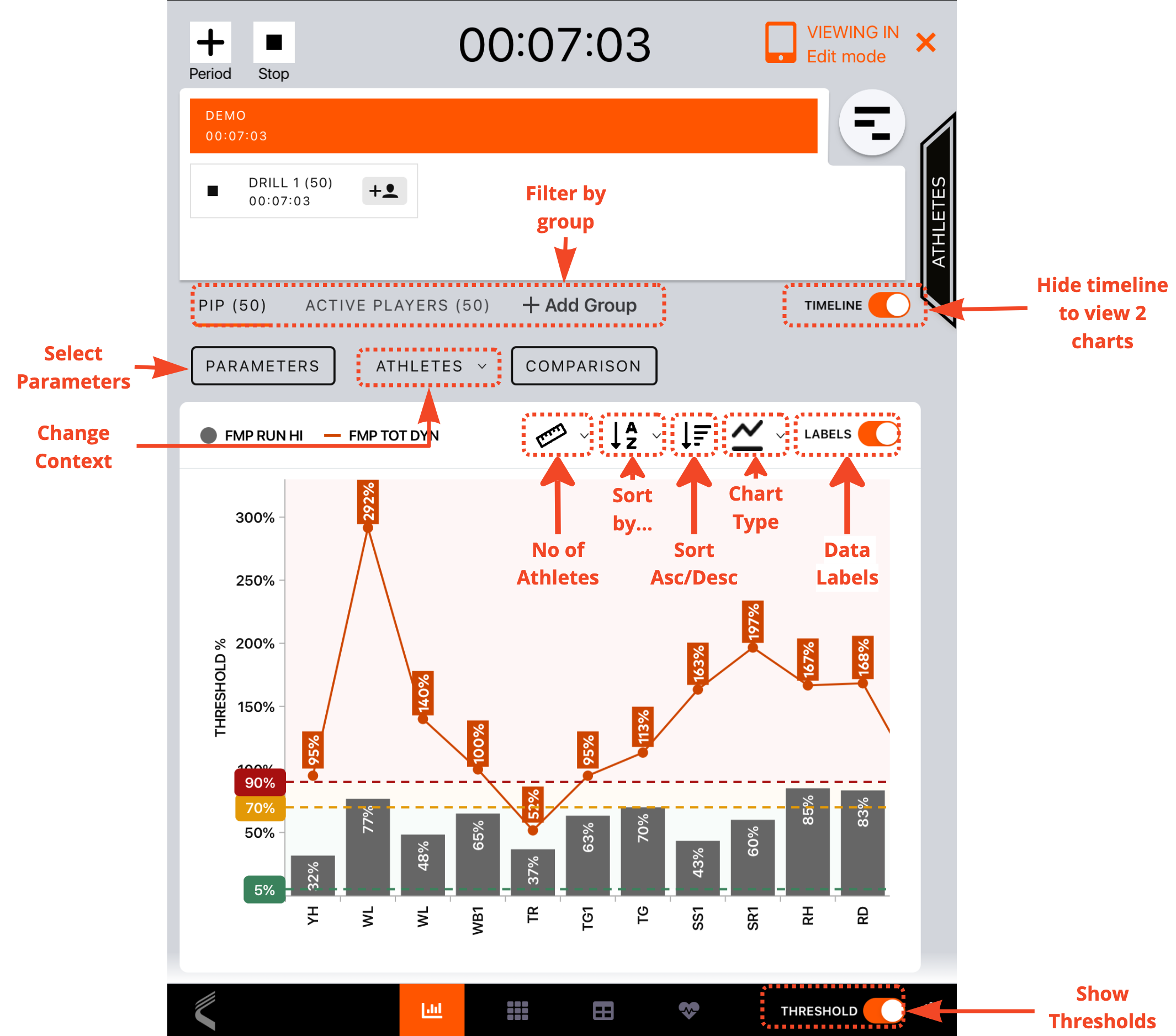

The new Chart View introduced in Vector Live 2.7 has the following benefits:
- Ability to view up to 4 parameters across 2 charts.
- View data labels to see the values achieved by athletes without having to go back to table or tile view.
- New charting options: first-ever scatter plot to view real-time relationships between parameters.
- If "Athletes" is selected, athletes Jerseys are shown on the axis.
- If "Groups" or "Periods" are selected then the first 3 initials of the group of period will be shown on the axis.
- When 5 or 10 athletes are selected you can scroll horizontally on the axis to view more.
- If "All" athletes are selected you can pinch the chart to zoom in and out.
Chart Options
Column Chart

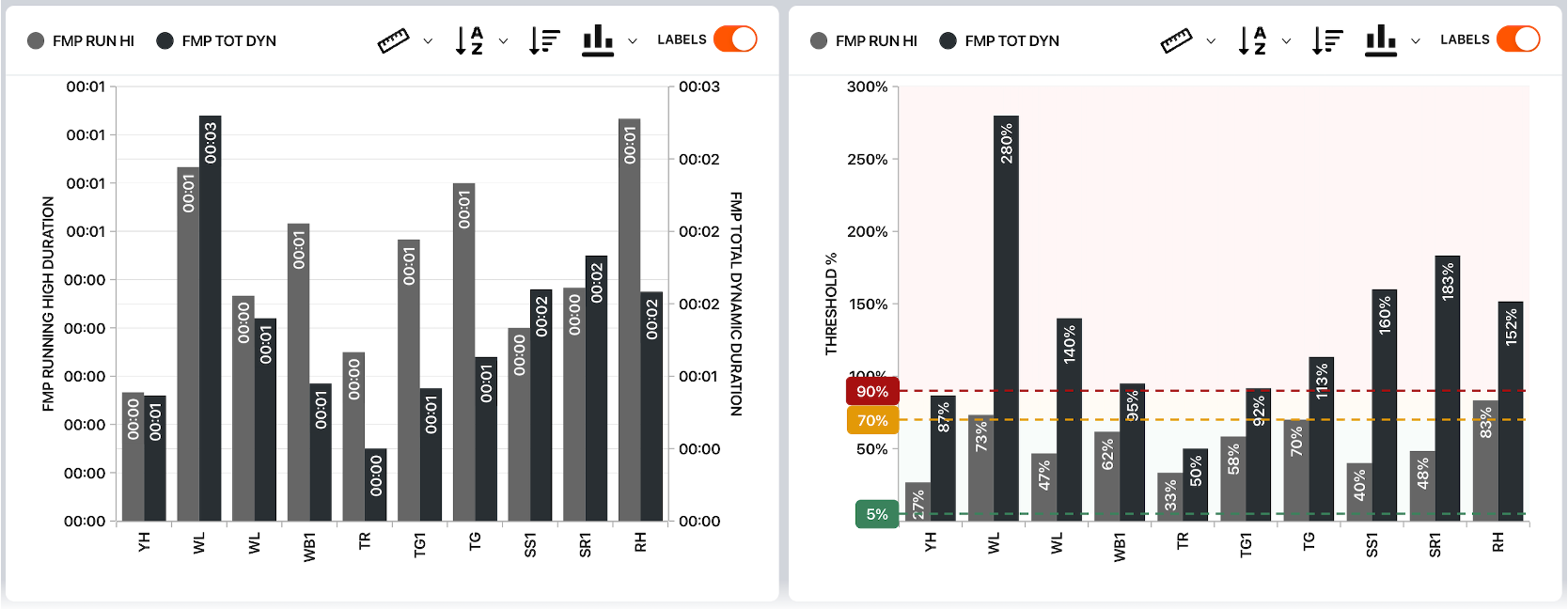

The column chart allows you to select 2 parameters side by side with the raw data labels shown when thresholds are disabled. In the example above, parameter 1 is black and parameter 2 is grey. If you enable thresholds you can see the percentage values relative to the thresholds as well as the lines for when an athletes passes a threshold.
Column & Line

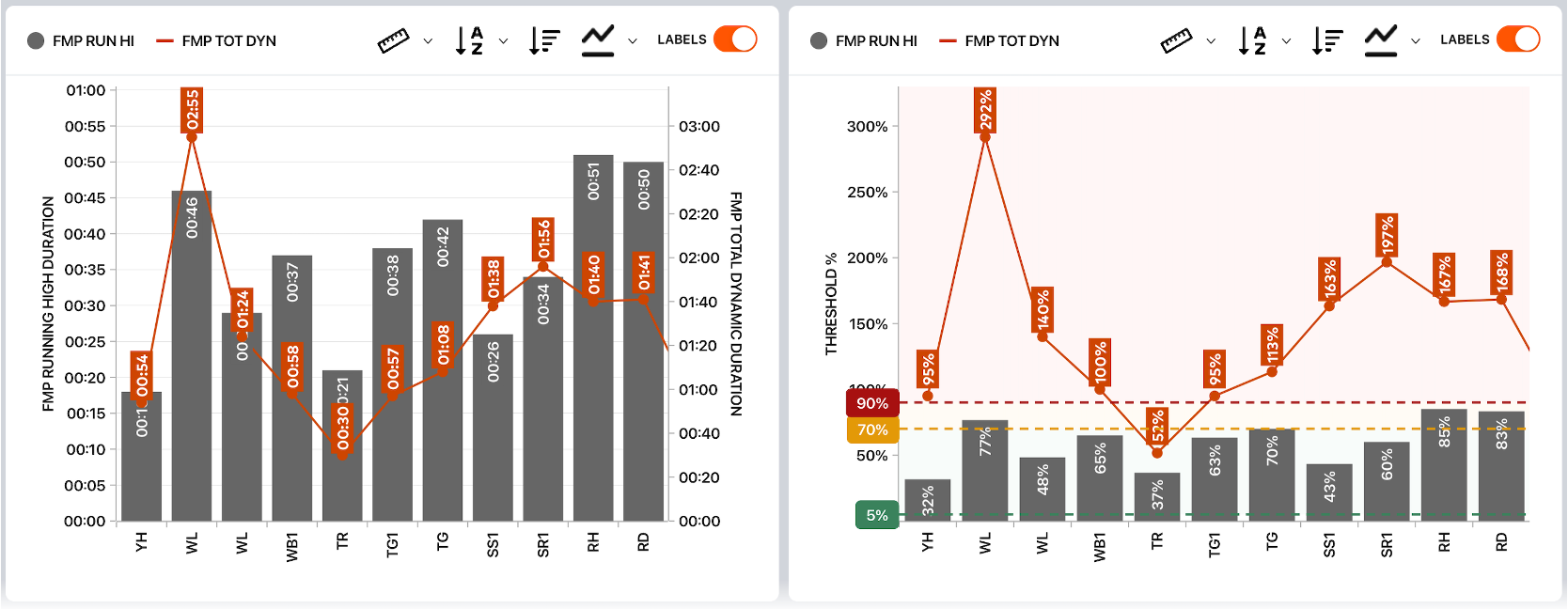

The column & line chart allows you to select 2 parameters. In the example above, parameter 1 is a grey column, parameter 2 is an orange line with the raw data labels shown when thresholds are disabled. If you enable thresholds you can see the percentage values relative to the thresholds as well as the lines for when an athletes passes a threshold.
Scatter Plot

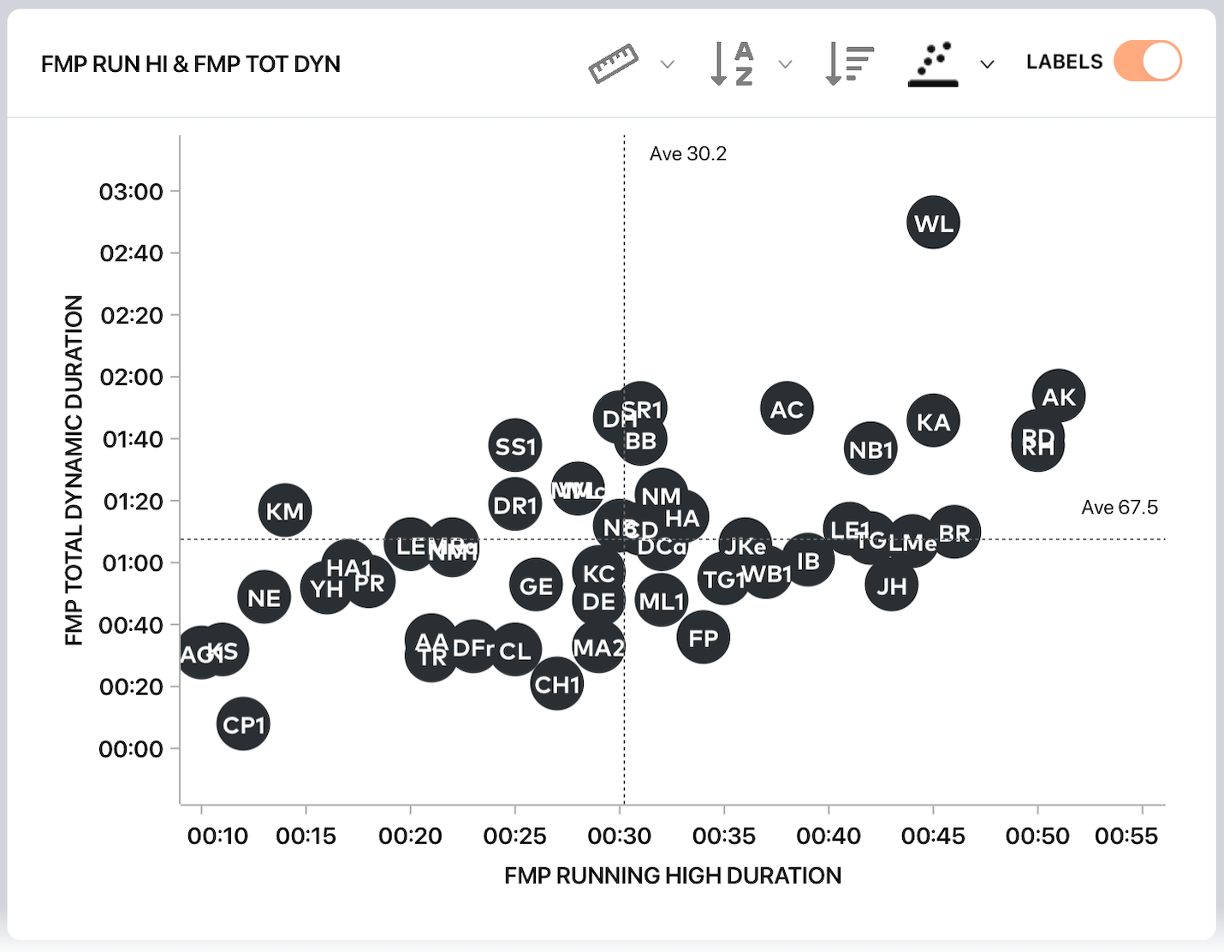

The scatter plot allows you to select 2 parameters. In the example above, parameter 1 is on the x axis and parameter 2 is on the y axis. Double tap anywhere on the plot and pinch to zoom in or out. You can also click on any data point to view the absolute values. Unlike column and column & line charts, it is not possible to visualize thresholds in the scatter plot. If thresholds are enabled, the chart will continue to show the raw data.
