Vector S7/G7 Dock Hardware Overview
-
24 Vector S7/G7 Device slots
-

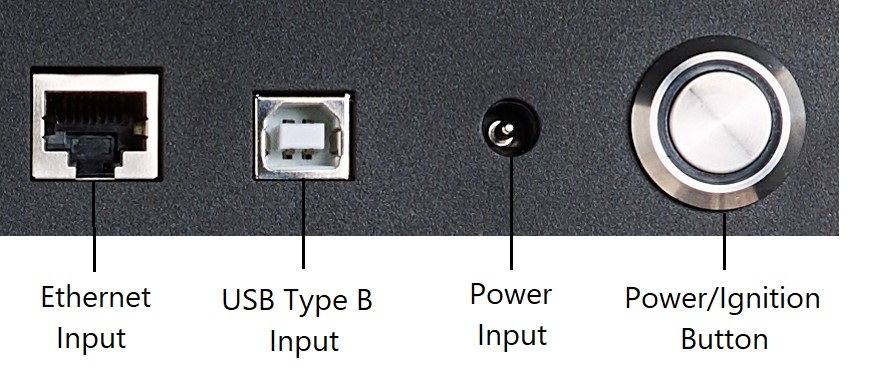

Ethernet Input for data Transfer and network Connectivity
-
USB Type B Input for data transfer
-
Dock Power Source Input for powering the dock
-
Dock Power Button for ignition
- Dock Battery status LED. For more information of Dock LED Behaviour, please see our article Vector Dock LED Behaviour (S7/G7)
-
Network Indicator LED. For more information of Dock LED Behaviour, please see our article Vector Dock LED Behaviour (S7/G7)
Vector Dock Functionality
- Device 'Ignition' functionality
The user can turn on or off all devices before or after a session with a single button press of the Vector Dock Power/Ignition button. For more information on how to use this functionality, please see our Vector Dock - Device Ignition/Quick Start Feature article. - Pitch-side ignition and USB Downloading on battery
The Vector dock can operate on battery only. This enables the user to use the device 'ignition' functionality and to download data pitch-side without having to connect the dock to a power source. - Removable from Travel Case
The Vector dock can can be removed from the Vector Dock travel case. This allows for easy transportation for pitch-side ignition and USB Downloading. -
90 min Battery Life
With all 24 devices connected to the Vector Dock, the Vector Dock battery will last for 90 minutes. For more information on the Vector dock battery life, please see our Charging the Vector Dock article. - Battery Saving Mode
The Vector Dock will automatically shut down after 20 minutes if it is not being used to download data from the devices. - Connecting the devices to the PC
Connect the devices to PC by placing the devices into the Dock, connecting the dock to the PC by USB cable and turning on the Vector Dock Power/Ignition button. For more information on connecting the devices to the PC, please see our How to connect Vector Devices to the Computer article.

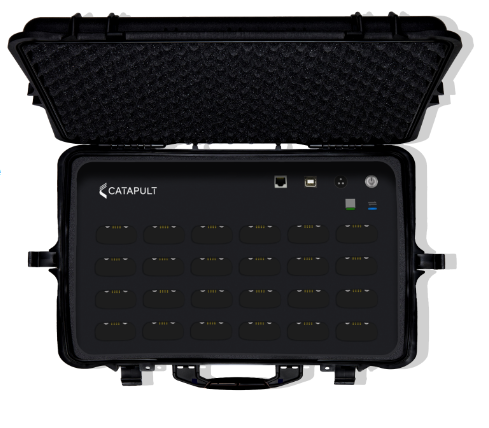

Vector Dock Travel Case Overview
-
Light Weight
-
Contains departments to store the Vector dock, receiver and cables
-
Contains zip pockets for easy access to stored items
-
Foam inserts provide protection for Devices and dock during travel
