What is the 'Manage Rawfiles' menu?
The Manage Raw Files menu allows you to download raw files that you have saved to the Cloud via a Cloud Archive from the OpenField Console.
How to Restore Raw Files from the Cloud Archive
-
Navigate to the OpenField Cloud and click Settings.
-
From the settings menu select Manage RawFiles.
-

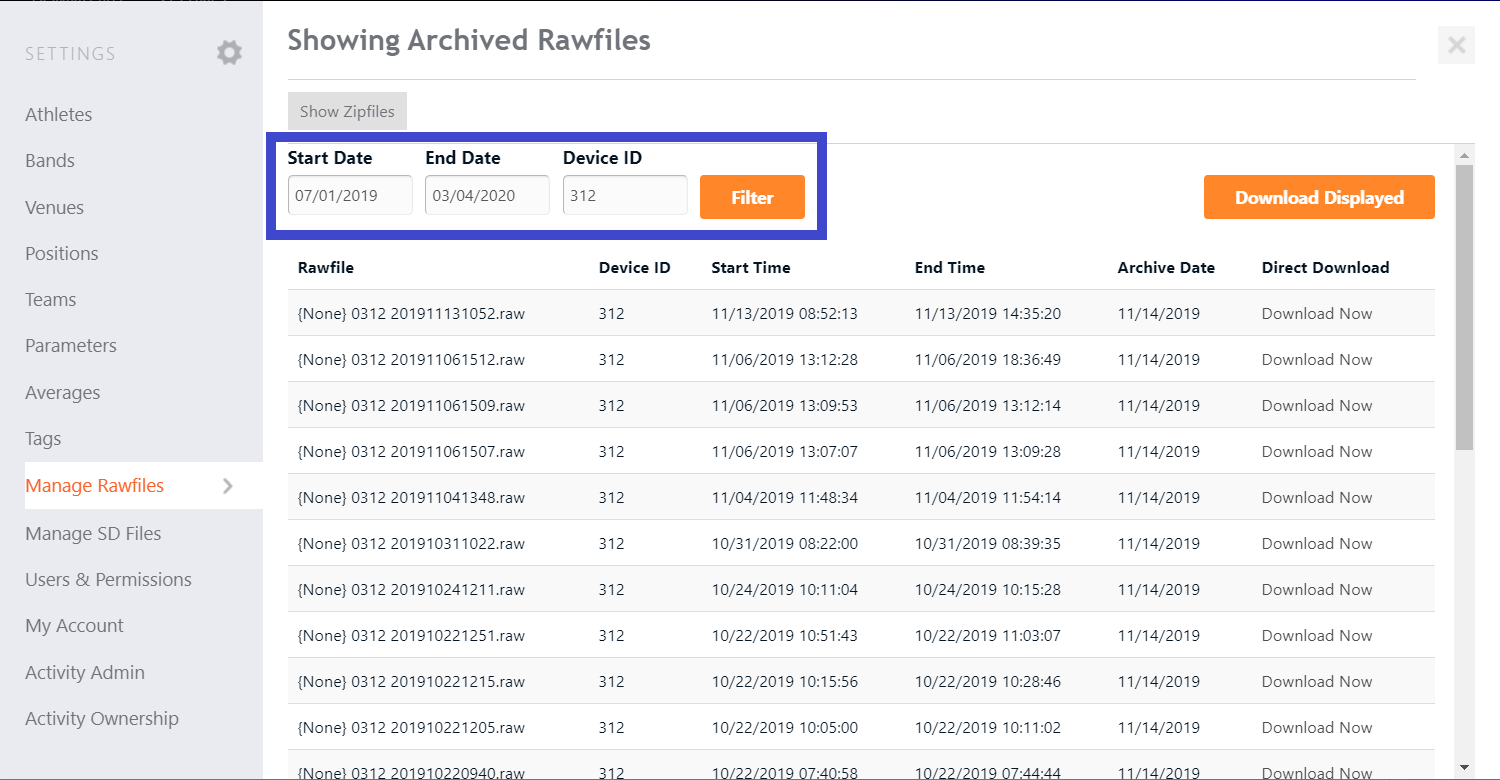

Enter in the Start Date, End Date and/or Device ID to filter which Data is available to be downloaded.
-

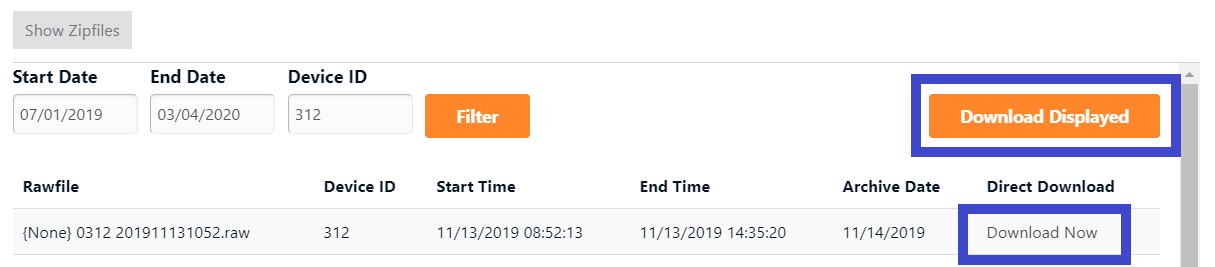

Click Download Displayed to download all Raw Files on Display or Download individual files by selecting the Download Now button in line with the Raw File.
- The Raw Files will download directly to your browser.
If the Download Displayed option was selected, please move the .zip folder onto your Desktop and Extract it onto your Desktop by right clicking on the folder > Extract All > Extract.
If the Raw File was directly downloaded, move the Raw File from the Downloads folder into a newly created Folder on your Desktop. The Raw Files are now ready to imported into the OpenField console.
How to Import Raw Files into the OpenField Console
-
Navigate to the OpenField Console and select the Data Transfer tile from the main tile screen.
-

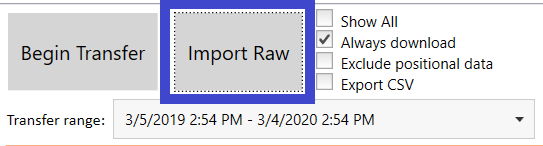

Ensure the Transfer is stopped and select the Import Raw button from the Data Transfer Menu, navigate to the folder in which the Raw Files are stored and click OK.
-
The Raw Files will be downloaded and the data will then show for the Activity in the console.
