Vector Receiver LED Behaviour

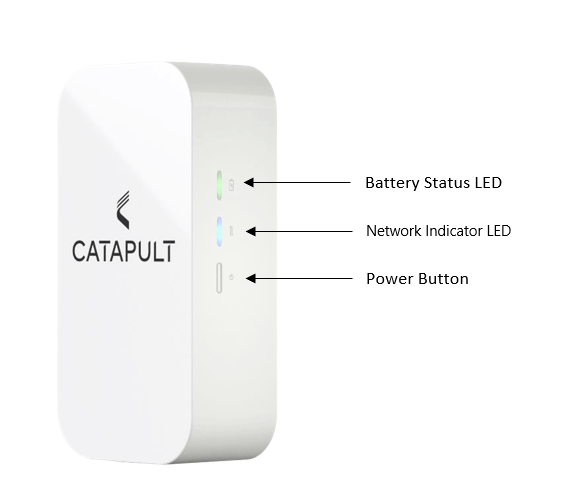

Battery Status LED

• Indicates the battery status of the Receiver when it is powered and not charging.
• Indicates when the Receiver is charging or completely charged via USB C.

Receiver is powered on and not charging:

Green = Battery level > 30%

Red = Battery Level < 30%

Flashing Red = Battery level < 10%

Receiver is in a charging state:

Red = Charging

Green = Fully charged Receiver

Network Indicator LED

• Indicates when Data is received by the Vector Receiver from the Vector Device(s).
• Indicates when the Receiver is powering on or off

Green = Receiver is powering on/off

Red = WiFi is starting up.

Solid Light Blue = WiFi is ready to use

Flashing Light Blue = Indicates that Data is flowing to the Receiver from the Vector Device(s)
