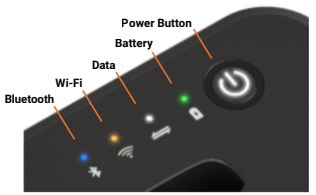

POWER
⚪ Solid → ON (full functionality)
🟡 Breathing → Standby (charging only, no data transfer)
⬛ Off → Powered off
BATTERY
~180min runtime | ~180min charge
🔴 Flashing → <10% (~15 min)
🔴 Solid → 10–30%
🟡 Solid → 30–80%
🟢 Solid → >80%
🟢 Breathing (plugged in) → Charging
🟢 Solid (plugged in) → Fully charged
DATA
⚪ Solid → USB-C connected to PC
WIFI
⚪ Breathing → Connecting
⚪ Solid → Connected
BLUETOOTH
🔵 Breathing → Searching
🔵 Solid → Connected
|

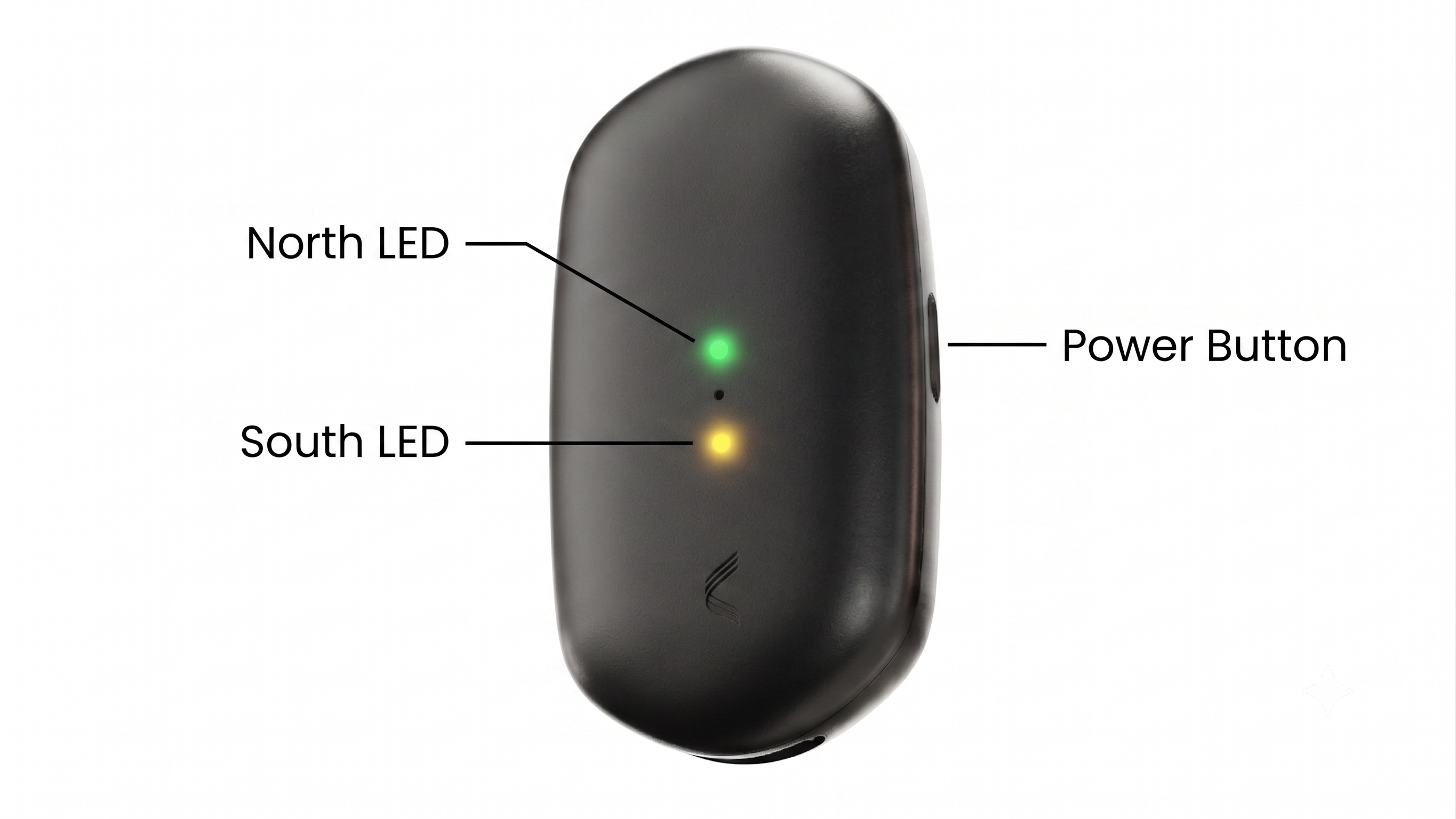

PAGE 1 - CONNECTIVITY
NORTH LED - GPS
🟢 Flashing → Searching
🟢 Solid → Connected
SOUTH LED - RECEIVER
🟡 Flashing → Searching
🟡 Solid → Connected
PAGE 2 - BATTERY
BOTH LEDS
~6hrs runtime | ~180min charge
🔴 Flashing → <10% (~30 min*)
🔴 Solid → 10–30%
🟡 Solid → 30–80%
🟢 Solid → >80%
*Runtime varies by usage
PAGE 3 - PERIPHERALS
NORTH LED - BLUETOOTH HRM
🔵 Flashing → Searching
🔵 Solid → Connected
SOUTH LED - BLUETOOTH
🔴 Flashing → Searching
🔴 Solid → Connected
WHEN DOCKED
NORTH LED
🟢 Breathing → Charging
🟢 Solid → Fully charged
SOUTH LED
⚪ Breathing → Data ready
⚪ Solid → Transfer complete
|
BATTERY
~6hrs runtime | ~4hrs charge
🔴 Solid → <10% (~45–50 min)
🟢 Solid → Charged
NETWORK
🔵 Flashing → Ready
🔵 Solid → Live streaming
|
