How to Download and Share Data after an Activity

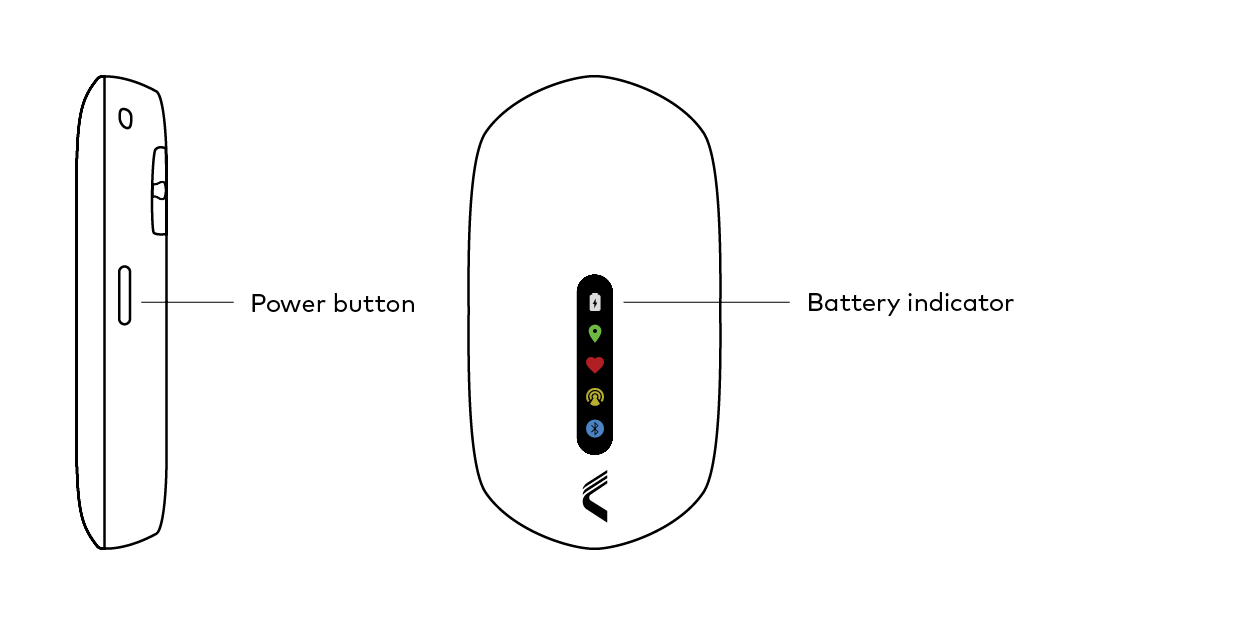

1. Ensure the Device(s) is turned on

To turn the device on, press the power button. The battery indicator will turn solid white.

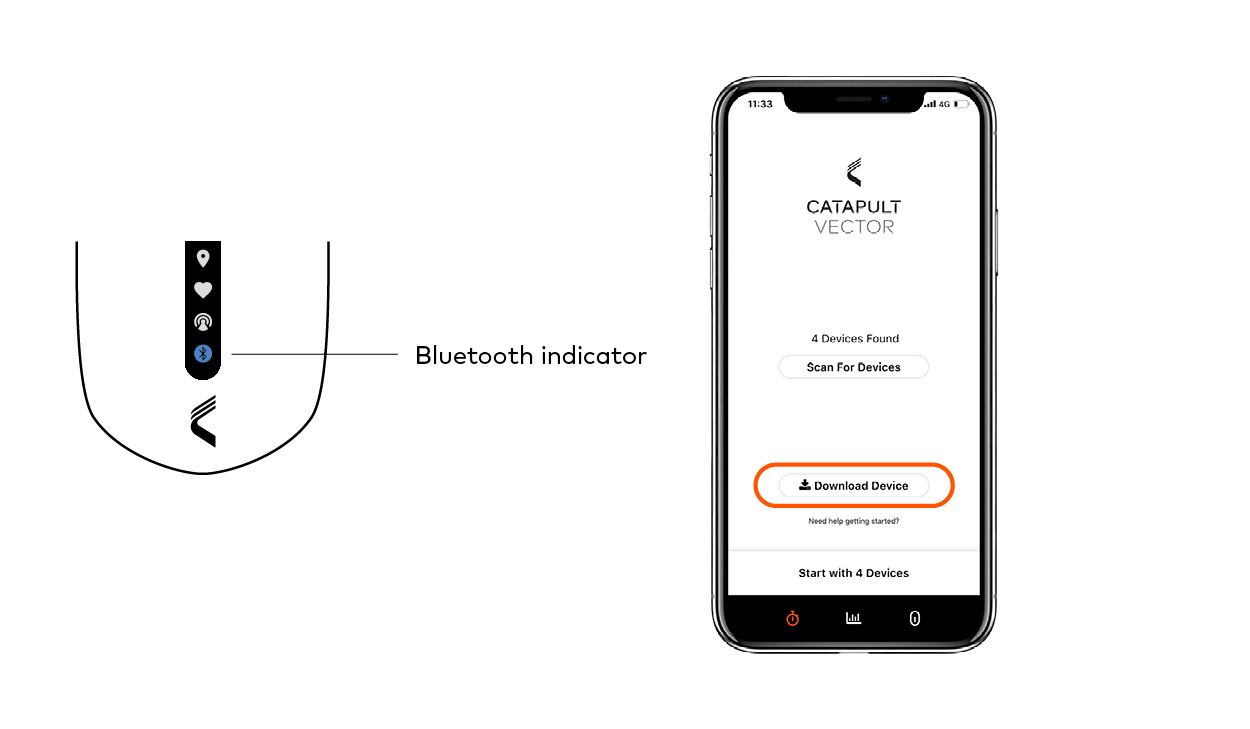

2. Select 'Download Device'

If there's a successful connection, the Bluetooth indicator will change to solid blue.

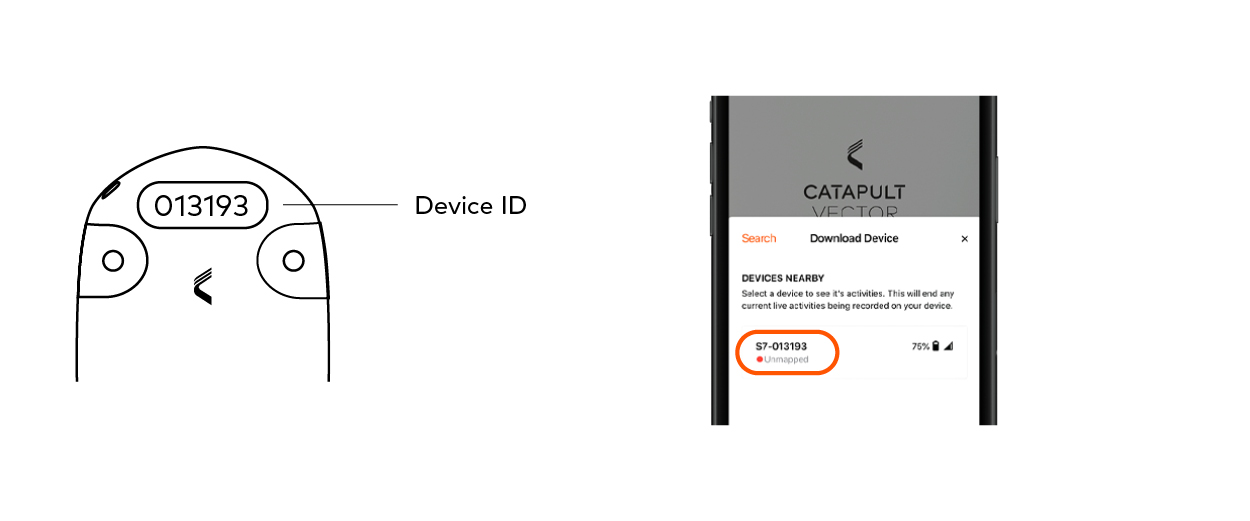

3. Select the device you want to download an activity from

The device ID (-0#####) corresponds to the number found on the back of the device. If your device is not mapped to your name, proceed through the mapping process when prompted.

4. Select the activity you want to download

All activities will automatically be named Unnamed Activity. To find the activity you are looking for, refer to the date and time listed under each Unnamed Activity. Ensure you rename the activity. Activities must be renamed in order to be downloaded.

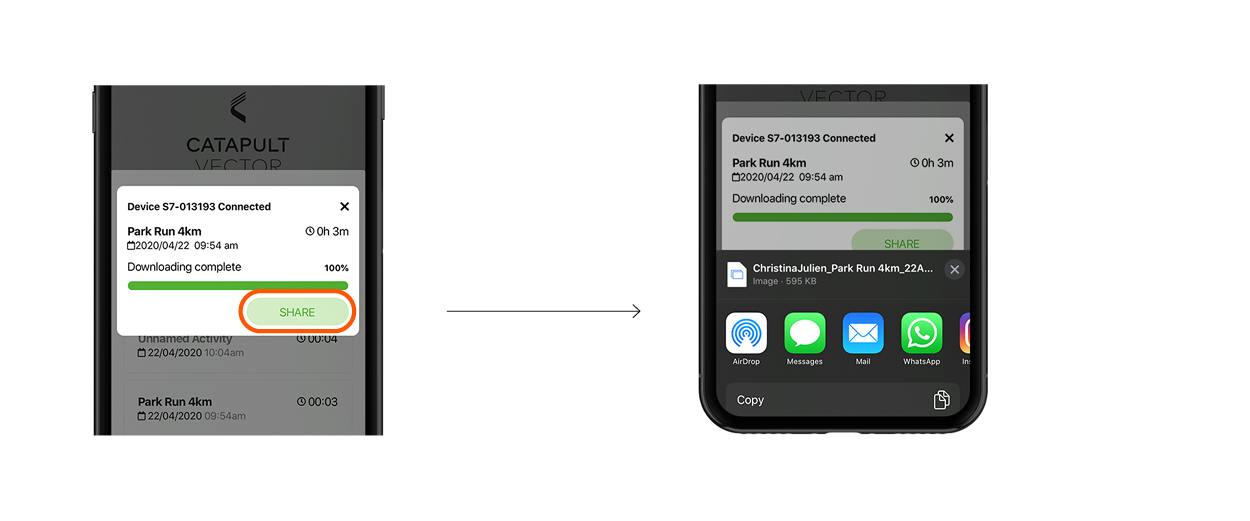

5. Once the activity has downloaded you can share it

Once the download is at 100%, tap share. It is recommended you share via email or any file sharing system such as Dropbox or Google Drive. Once the file has been successfully shared, you will be prompted to power off your device.
