Open the Vector Smartwatch App from the Apple Watch by clicking on the Catapult icon from the main App screen.
-
Click Find Devices to pick up the device worn by the athlete.
-
If the Device hasn't been mapped to an athlete via the Smartphone App, the Device ID will appear on the main screen with a question mark.
To map the athlete via the Smartphone App, please see Step 6 in the Vector Smartphone App Quick start guide.
-
Once an athlete has been mapped in the Smartphone App and a Device is found, the athlete will appear beneath the number of Devices Found.
-
Click on the athlete to view collected data for the session for that athlete.
-

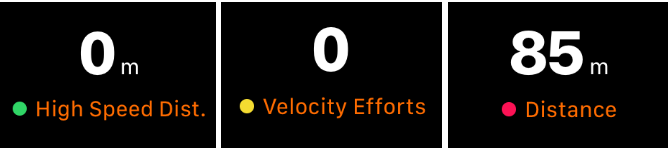

Click the screen and swipe left or right to view different parameters.
Note: The values for each of the parameters are representative of data collected from the time the device is turned on to the last time the Device was seen by the Smartwatch. -
The color of the circle beside the Parameter name is indicative of the amount of time since the Device was last seen by the Smartwatch
Green = within the last 30 seconds
Yellow = within the last 30-60 seconds
Red = +60 seconds
-
From any of the listed parameters, press and hold the screen to buzz or turn the device off.
- For more information on the Vector Smartwatch App, please see our Vector Smartwatch App - FAQs article.
