Catapult Vector Watch Guide

The Catapult Vector Watch application is designed for athlete rehabilitation and return to play training. This application allows users to track athlete data via Bluetooth without additional hardware, providing coaches with hands-free mobility and real-time data access directly on the field.

How to Install

The Catapult Vector app is available only on the App Store for iPhone, iPad & Apple Watch.

To download the app:

• Search for Catapult Vector app in the Apple store, or
• Scan the below QR code




How to Log In

Logging In to the Application

1. Select the Login button on the watch face.
2. Choose the correct Region from the menu.
3. Select the Username input field.
4. Enter the account password and select the Login button.

How to Start a Live Activity

Starting a Live Activity Session

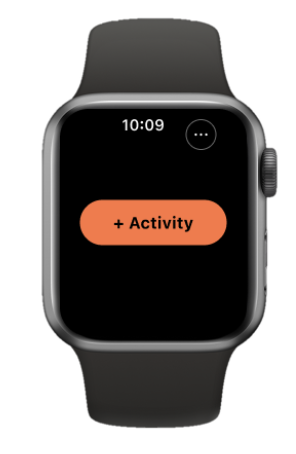

1. Select +Activity on the screen.



2. Allow the watch to scan automatically for nearby Vector devices.
3. Select +Activity once the application discovers the expected number of devices.
4. Select +Period to begin collecting performance data for your athletes.
5. Add athletes to the active Period by selecting their names from the list.
   • A maximum of 4 devices can be added to any individual period.

How to View Live Data

Viewing Real-Time Performance Metrics

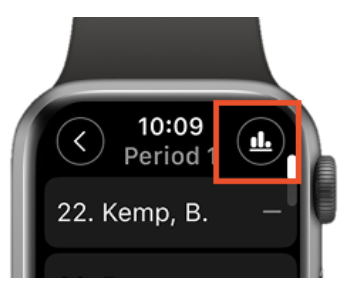

1. Navigate to the live data screen by selecting the graph icon in the top right corner of the watch interface.

• An alert icon will display if a device disconnects for longer than 30 seconds
• All historical data except for Max Velocity will backfill automatically once the device returns to range

How to Change Parameters

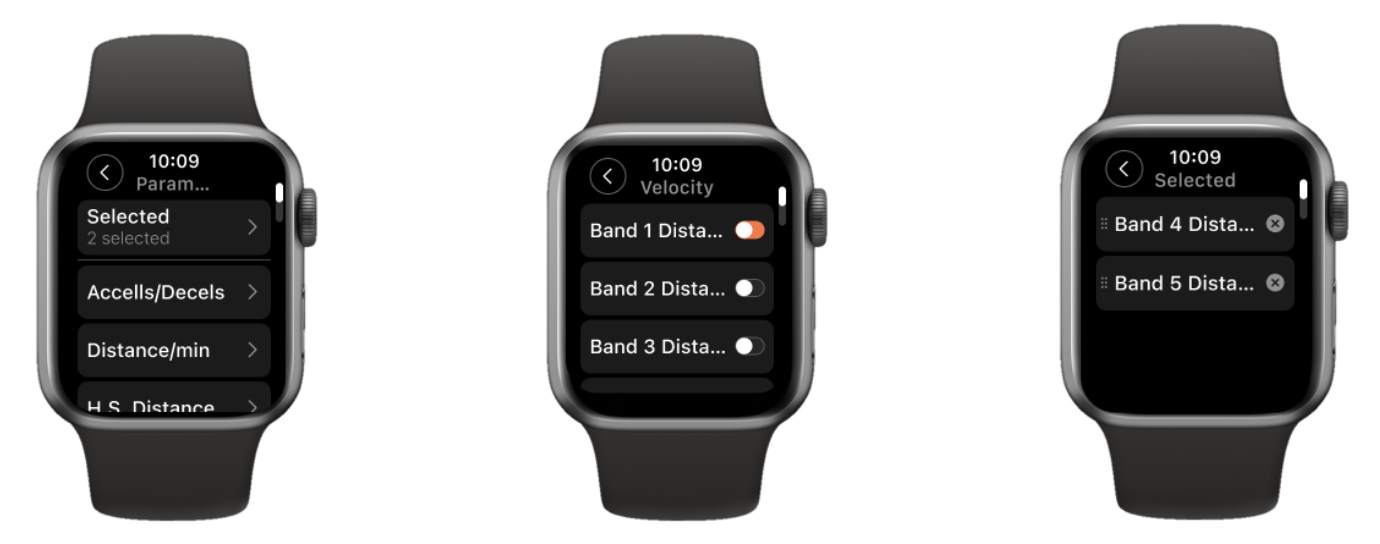

Customising Displayed Parameters

By default, the application displays all 26 available parameters for each athlete. You can adjust these settings to show only relevant metrics.

1. Navigate to the More menu from the live data screen.
2. Select Parameters.
   • Toggle individual parameters on or off within their respective categories.
   • Remove unwanted metrics directly from the Selected category view
   • Hold and drag the left side of any parameter to reorder its display position

How to Save an Activity

Saving and Exiting a Session

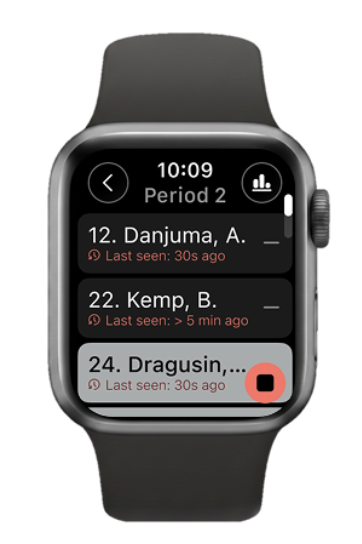

1. Navigate back to the Period list at the conclusion of your training session.
2. Select the Stop icon located in the bottom right corner.

To Save

• Select the Save icon in the top left corner of the screen.
• Select End & save to complete the session. Selecting End & Save automatically syncs the Activity metadata to the Cloud

To Discard

• Select the More menu
• Select Discard Activity
• Discard
