Background
When running a Bluetooth activity in Catapult Vector, Vector Pro 7 users can adjust the live parameter bands to align with the bands they would normally use during a live session with a Vector Receiver.
How to Change Parameters
- Start a live Bluetooth activity in Catapult Vector.
- Navigate to the Reporting screen.
- Select the More menu (three dots) in the top-right corner.
- Select Parameters.
You will see a list of all available parameters that can be displayed in the table.
Parameters currently shown in the table appear under the Selected category.
To remove a parameter, click the X next to it in the Selected list.
- To add a parameter, tick the checkbox next to it in any of the available categories.
How to Change Parameter Bands
During a Bluetooth activity, you can customise the bands used to calculate the following parameters:
- High Speed Distance - default is bands 5 & 6
- High Speed Effort - default is band 5+
- Accelerations - default to bands 1-3
- Decelerations - default to bands 1-3
- Time in Red Zone - defaults to bands 5+

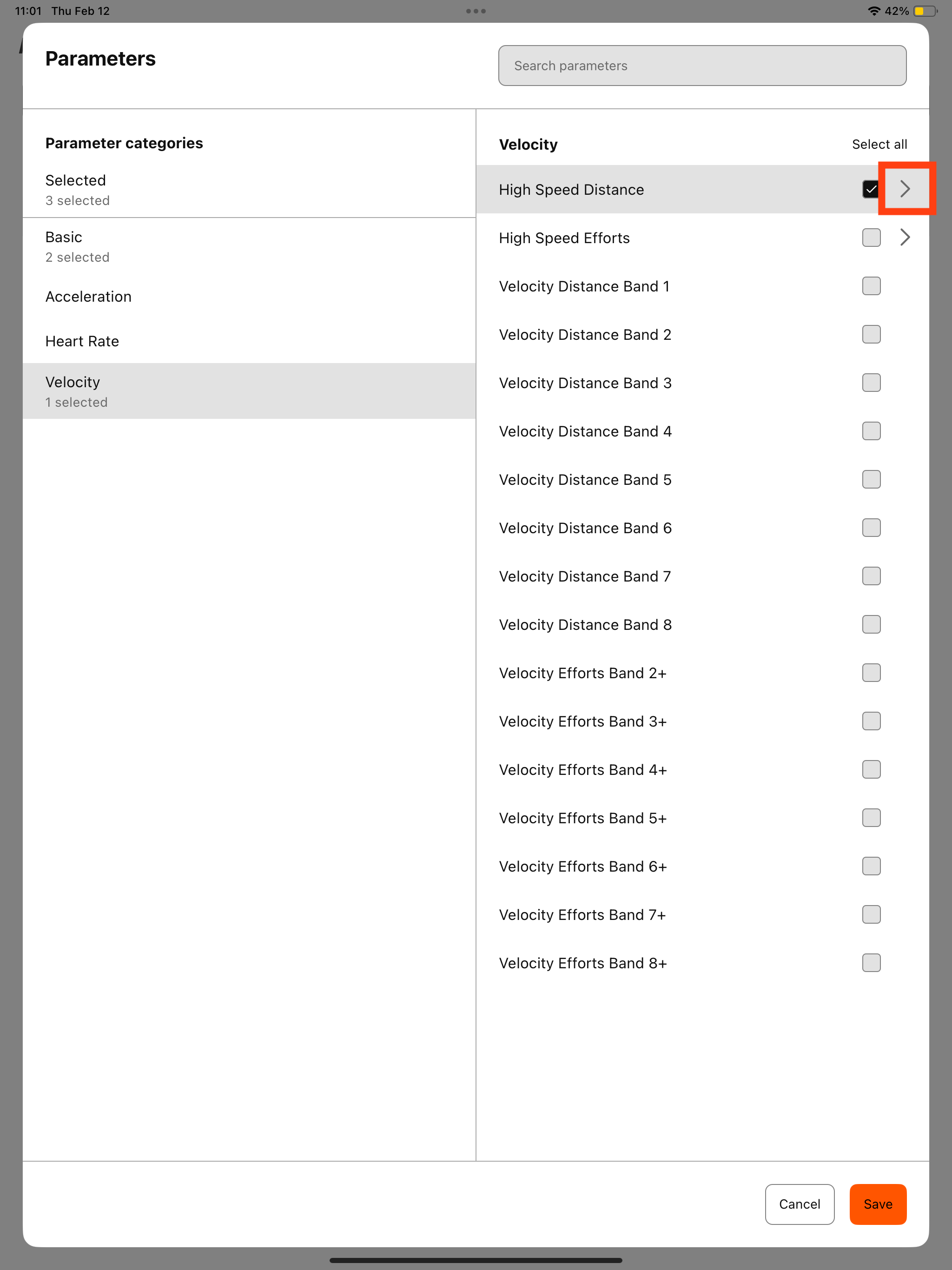

To adjust the bands:
Open the More menu (three dots) on the Reporting screen.
Select Parameters.
Locate one of the parameters listed above.
Click the arrow to the right of the parameter name.

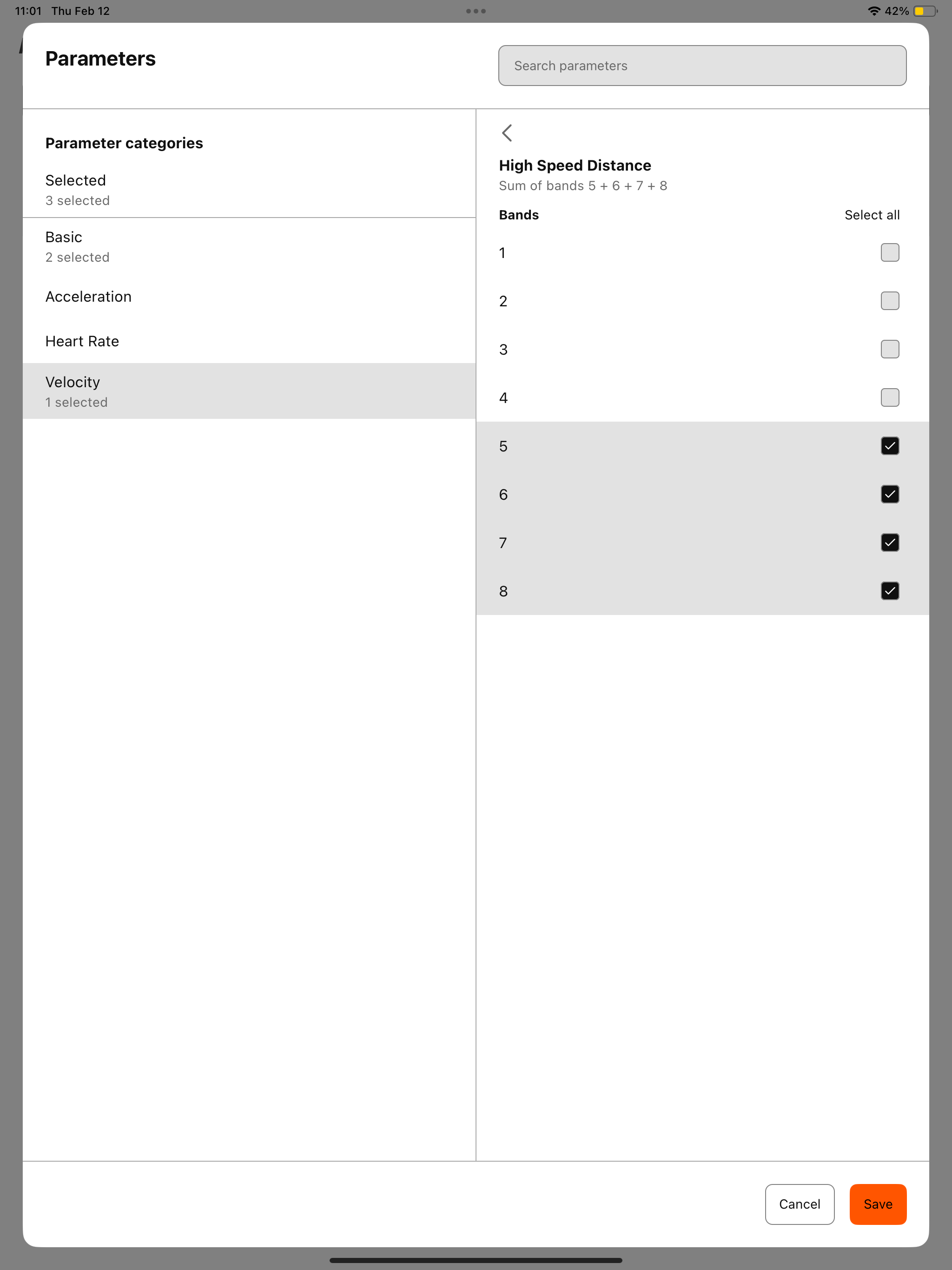

A list of available bands will appear with checkboxes.
Select or deselect the bands you want included in the calculation.
Your changes will apply immediately to the live Bluetooth activity, ensuring the parameter calculations align with your preferred band settings.
